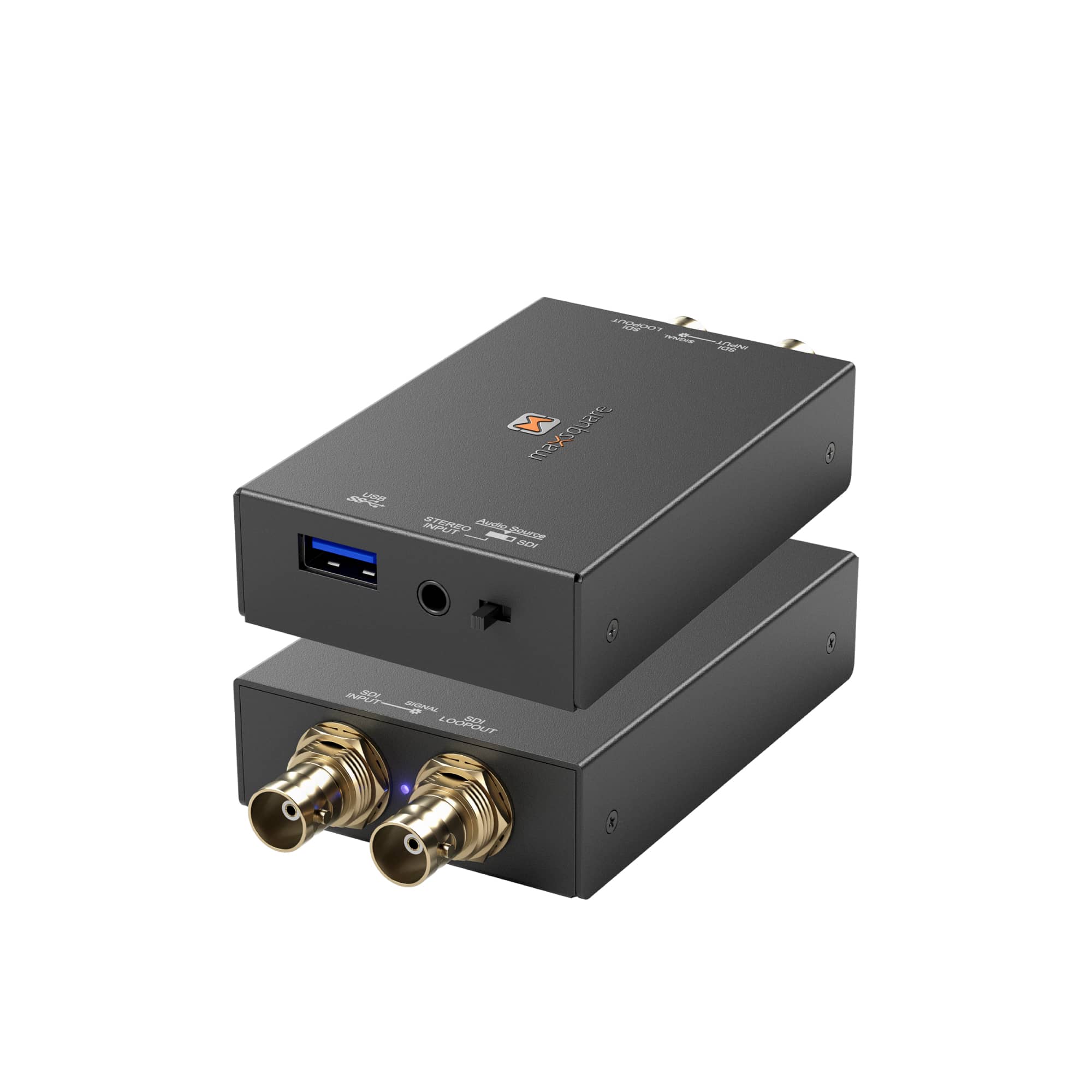

The MSQ-1200CP 3G-SDI Capture Box over USB 3.1 with SDI Loopout is a professional solution to capture 3G/HD/SD-SDI signals. It adopts USB 3.1 Gen 1 (USB 3.0) interface, enabling high-speed transmission. By using this capture box, users can record 3G/HD/SD-SDI signals. Additionally, the MSQ-1200CP can record and display 3G/HD/SD-SDI in its original, uncompressed from with more accurate color reproduction.
MSQ-1200CP also uses large volume image buffer technology to effectively prevent the video tearing. The high sampling rate and high sampling accuracy ensure that images have high sharpness, rich details, and less color edges.
FEATURES
FEATURES / SPECIFICATION
- Supports SDI output resolution scaler with audio embedding
- Supports SDI video and audio streams over USB 3.1 Gen 1
- Supports USB 3.1 (MJPG/YUY2) and USB 2.0 (MJPG)
- Supports SDI loop-through
- Supports Input and output resolution up to 1080P@60Hz (480i, 480p, 576i, 576p, 720p 50/59.94/60hz, 1080i 50/59.94/60hz, 1080p 50/59.94/60hz)
- Supports SDI Embedded Audio & Stereo Audio input
- Auto-detection on video format to ensure plug-play operations
- Ultra-Low Latency
- Works on Windows 7/8.1/10, Mac and Linux OS (No driver required)

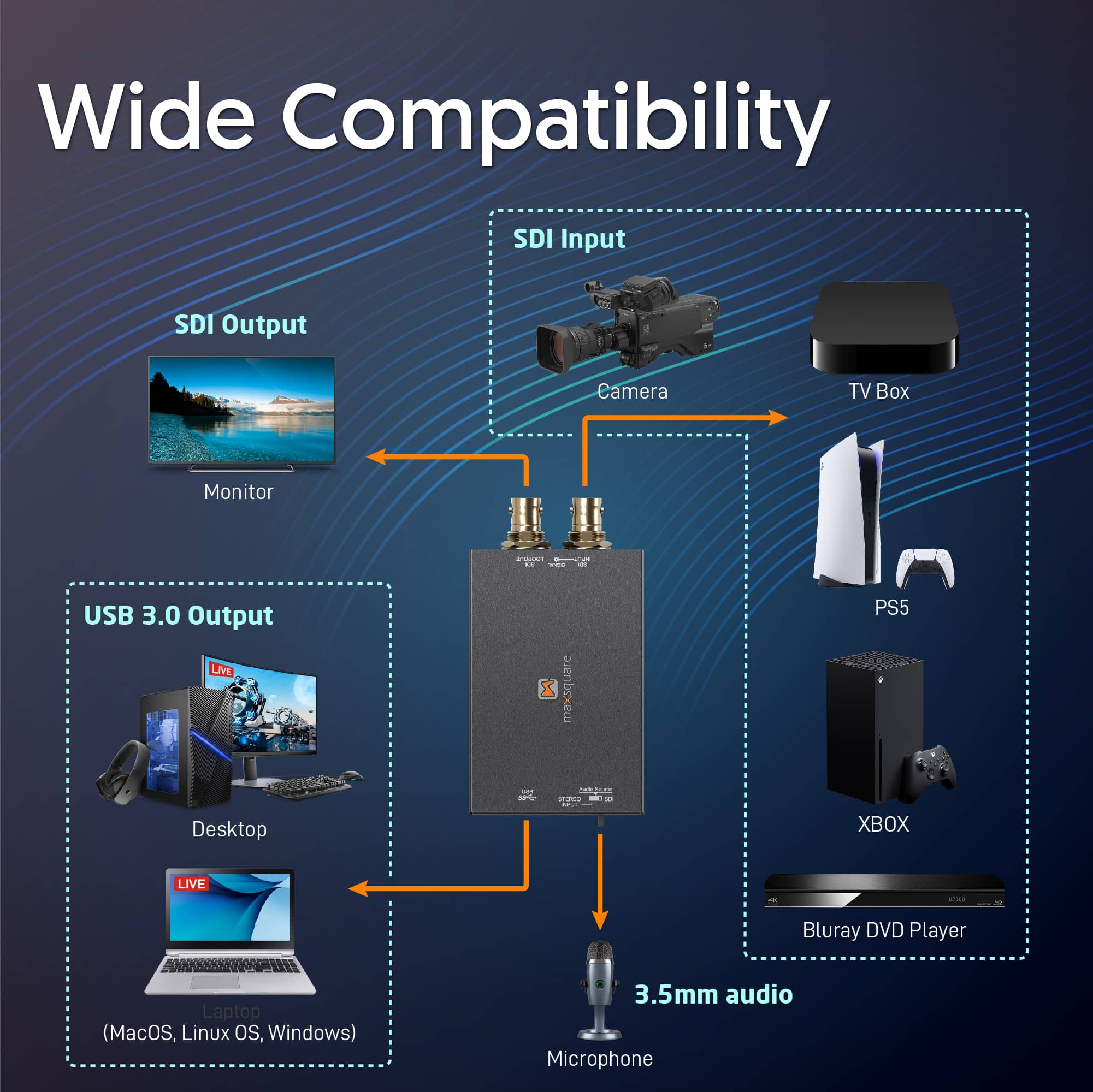

- Compatible with most 3rd party software such as OBS Studio and AMCap and more

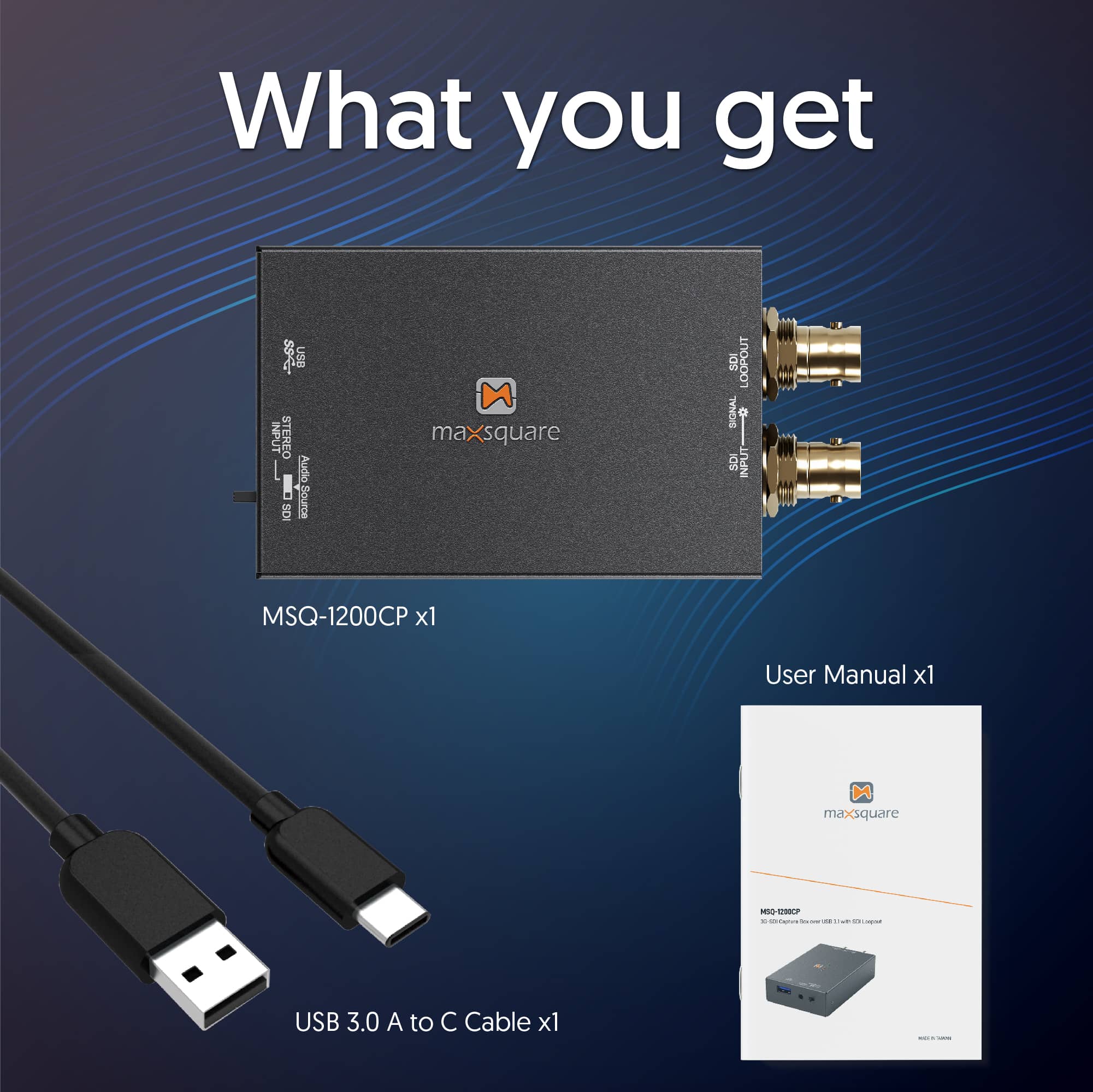

What's in the box
- MSQ-1200CP
- 1x USB 3.0 A to C Cable
- 1x User Manual
FAQ
A: Yes, with its SDI loopout function, you can effortlessly extend or split the screen to a remote display. This offers enhanced monitoring options for a more effective live streaming experience.
