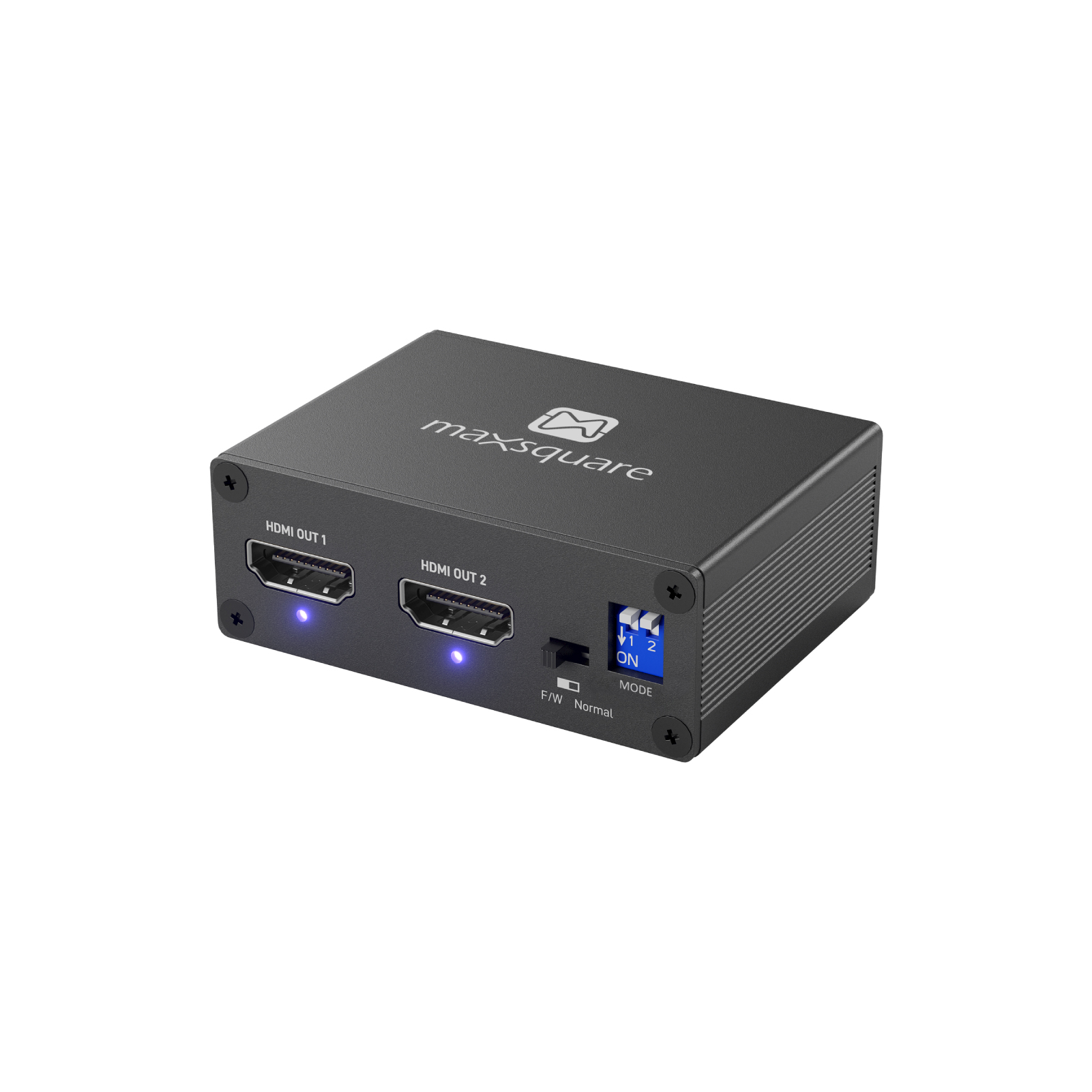

The MSQ-720P 4K HDMI 2.0a 1×2 Splitter with Audio Extractor is the most cost-effective HDMI splitter solution, allowing the transmission of high-definition video and high-quality audio to 2 different locations without any quality loss. Additionally, MSQ-720P supports HDR and true 4K2K video. Without sacrificing any active audio channels from the audio bitstream, this device supports the separation of high-quality digital S/PDIF (Toslink) audio from the incoming HDMI signal.
The compatibility among various HDMI sources and receivers could also be ensured with built-in USB firmware update mechanism. The MSQ-720P is ideal for high quality HDMI broadcasting, digital signage, and educational applications since it supports the highest HDR/4K2K@60 4:4:4 8bits and high-definition audio!
FEATURES/SPECIFICATION
- HDMI 2.0a /HDCP 2.2 and 1.4 Compliant
- Supports 4K2K@60 4:4:4 8bits, HDR(4K2K@60 4:2:0 10bits)
- Controllable 4K to 1080P Downscale Using Dip Switch
- Wide Frequency Range: 25MHz ~ 600MHz
- Video Bandwidth: 18Gbps
- HDMI Audio Format: PCM2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
- Optical Audio Format: PCM2, Dolby 5.1, DTS 5.1
- Supports Audio Extraction via Toslink
- Supports xvYCC, x.v.Color and Deep Color
- Micro-USB Firmware Update for Expanding Compatibility

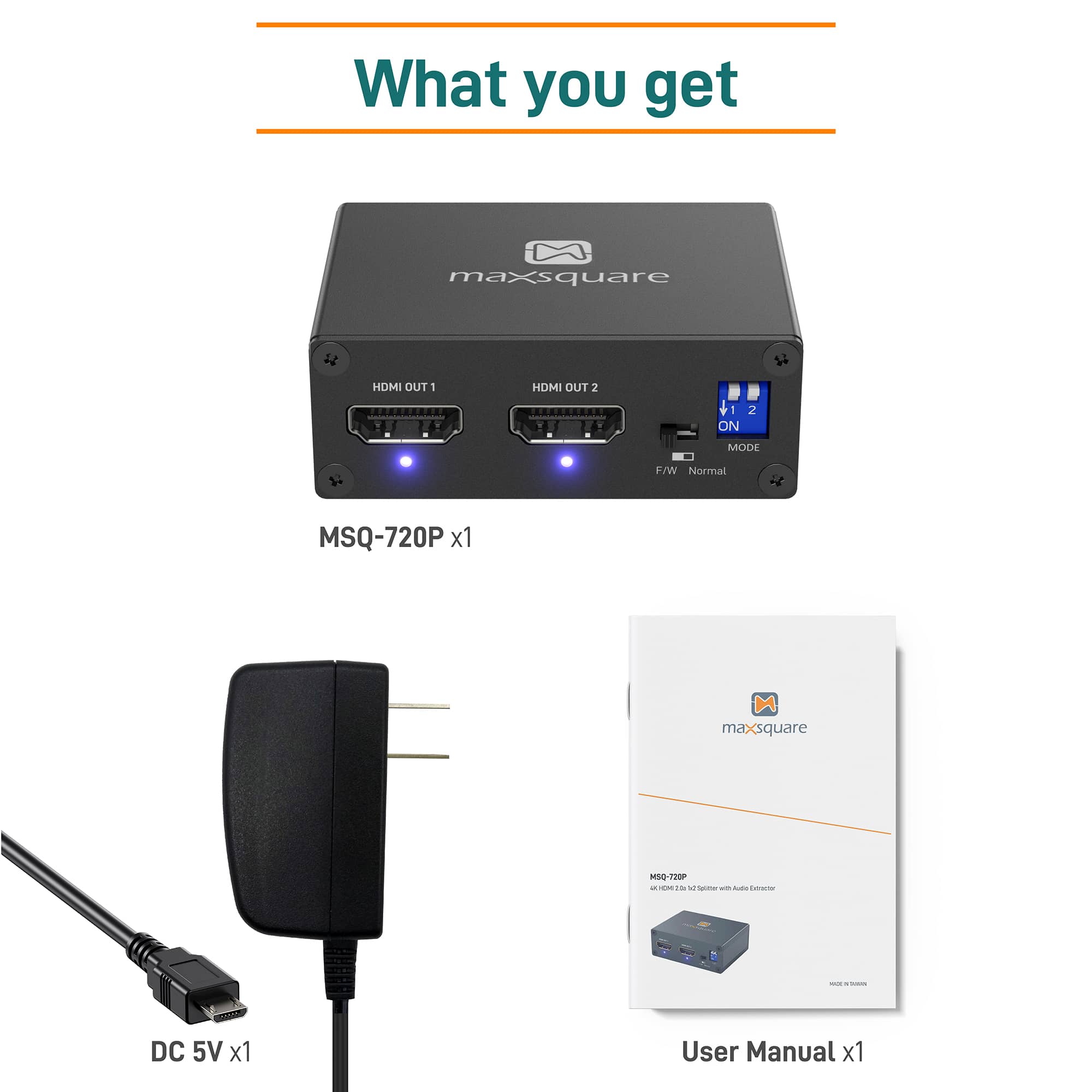

What's in the box
- 1x MSQ-720P
- 1x DC 5V
- 1x User Manual

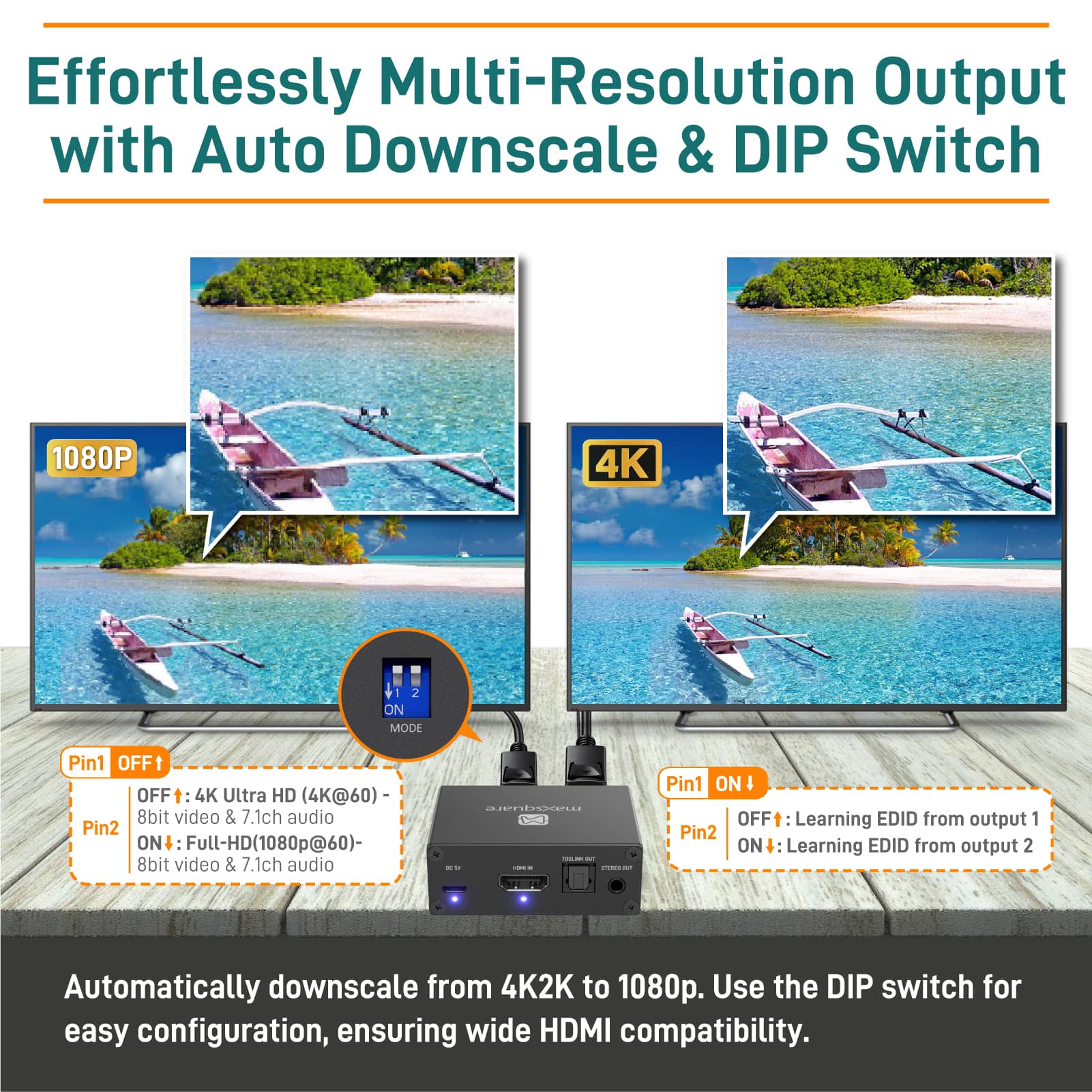

Downscale 4K to 1080P
Detect the HDMI incoming signal and downscale it to be compatible with 1080p displays for the output 1 and 2 by dip switch.

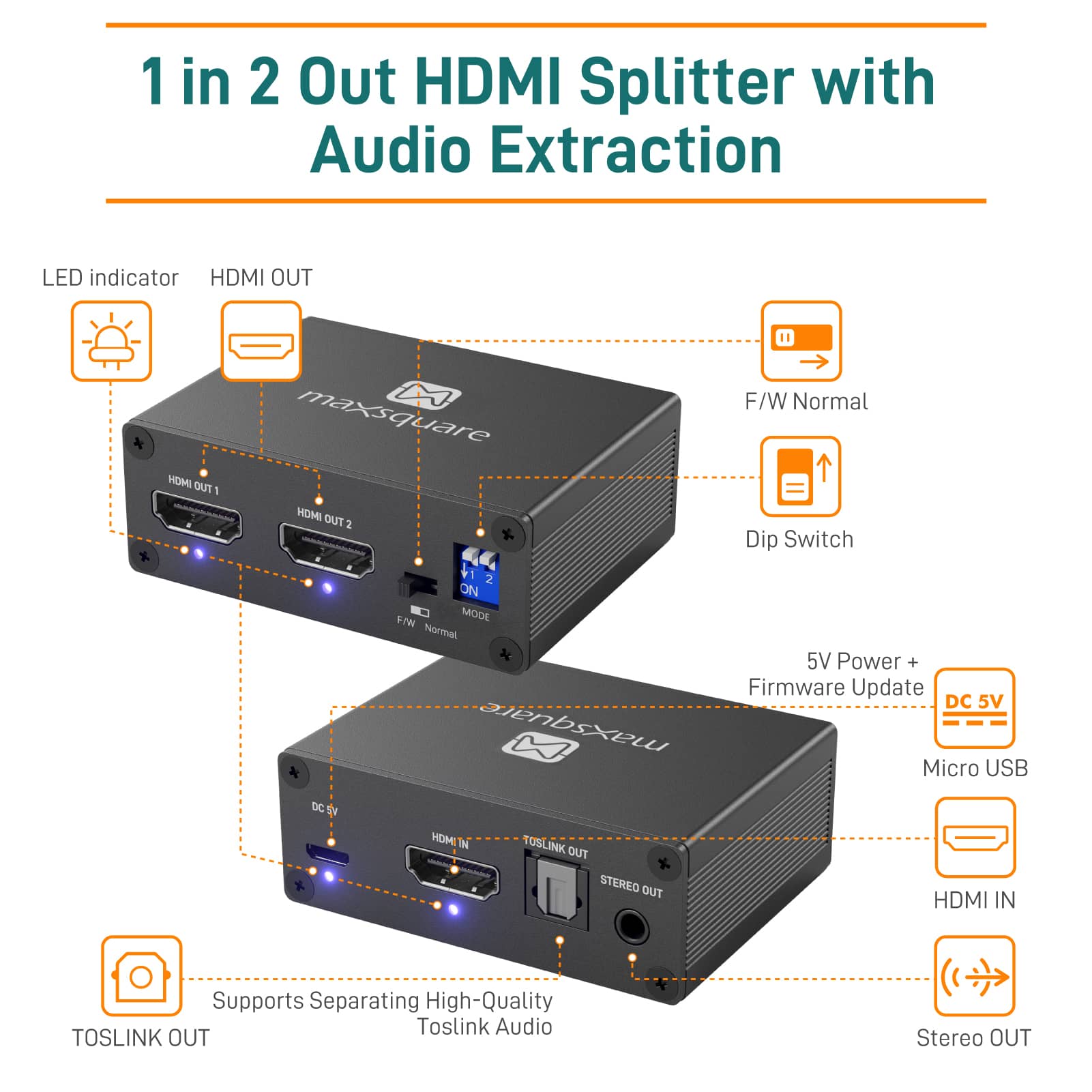

Audio Extraction (Digital Toslink Or Analog Stereo)
Extract high-quality audio
– Stereo 3.5mm phone jack supports 2 channel PCM
– Toslink S/PDIF jack supports: LPCM 2ch/5.1ch, Dolby 5.1, Dolby 7.1, DTS 5.1, DTS 7.1, DTS-HD Master Audio and Dolby TrueHD.
Same Screen Sharing
Effortlessly duplicate a single HDMI signal to two locations simultaneously without any loss in quality.
FAQ
A: Yes.
A: No, it does not support ARC.
