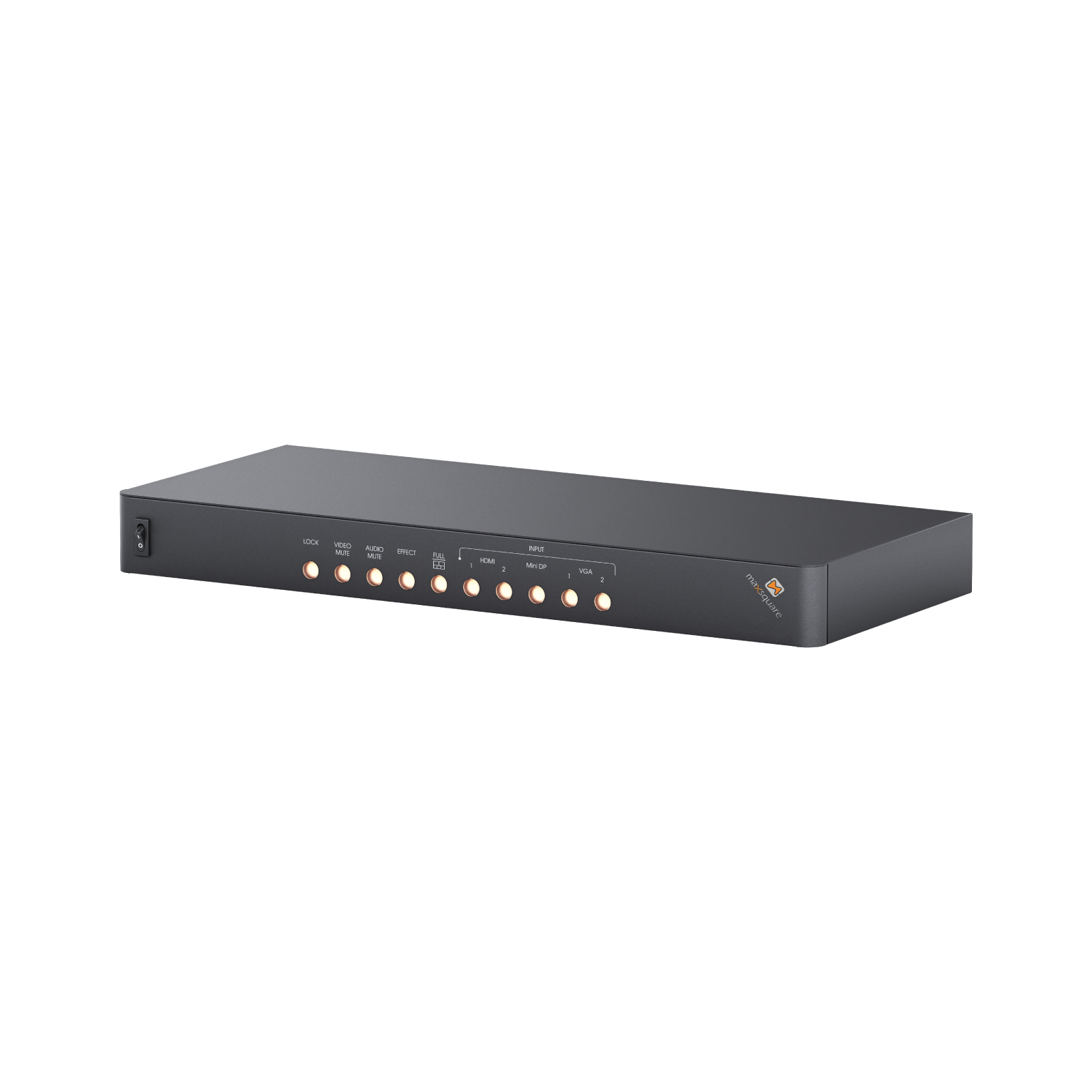

The MSQ-520S 5×2 Multi-Format Presentation Switcher is a multi-purpose presentation switch that combines features for analog to digital conversion, scaler, HDBaseT extender, and video seamless switch into a compact device. The MSQ-520S is highly suited for usage in digital signage, conference room presentation systems, and other similar environments or applications since it has five multi-format inputs to one HDMI and one HDBaseT output.

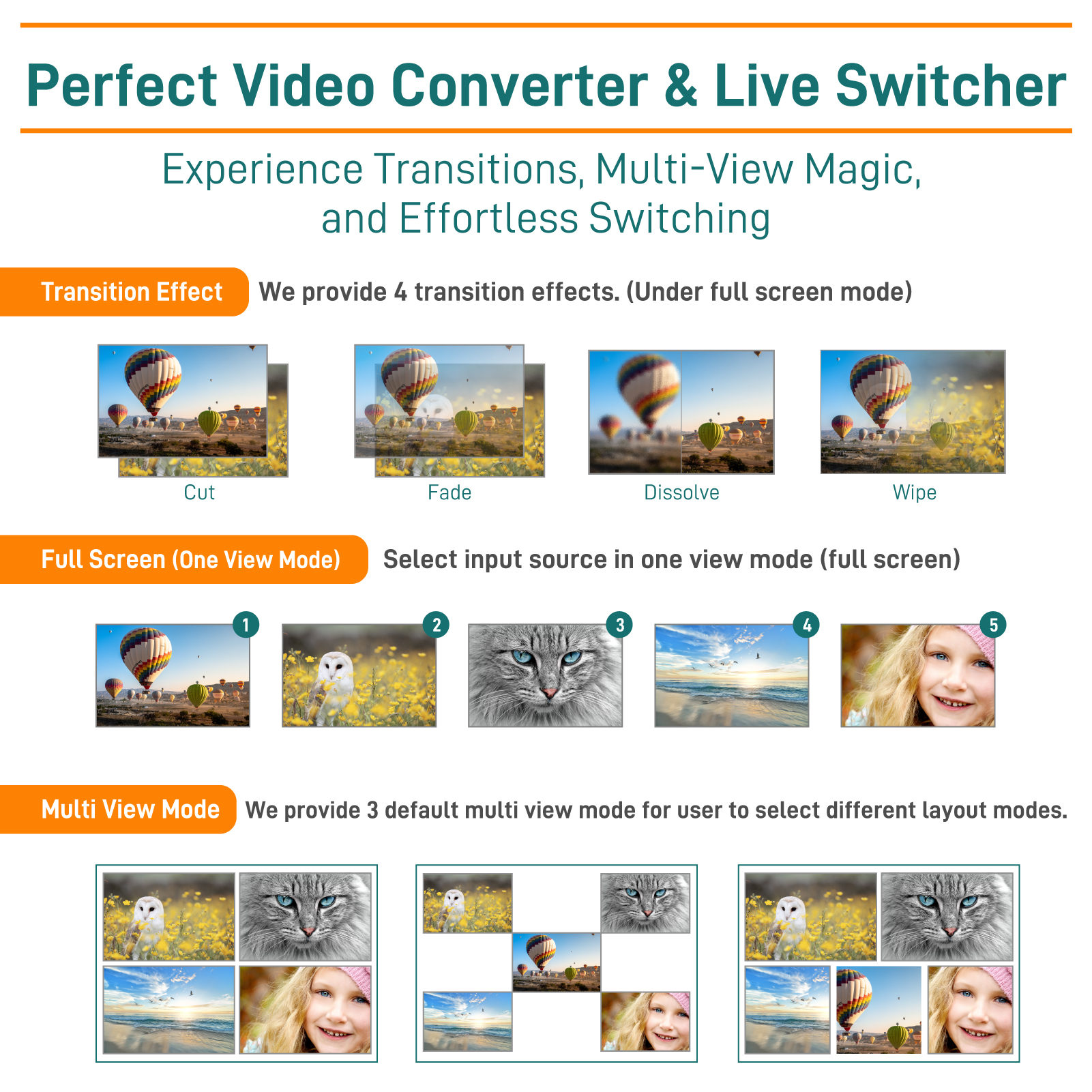

Users can display the mixed video with enhanced presentation quality while using output resolutions up to 4K2K60 4:4:4. To provide the most flexible control method for various applications, the device can also be operated by software, IR remote, and push buttons.
FEATURES
FEATURES & SPECIFICATION
- HDCP 1.4 / 2.2 compliant

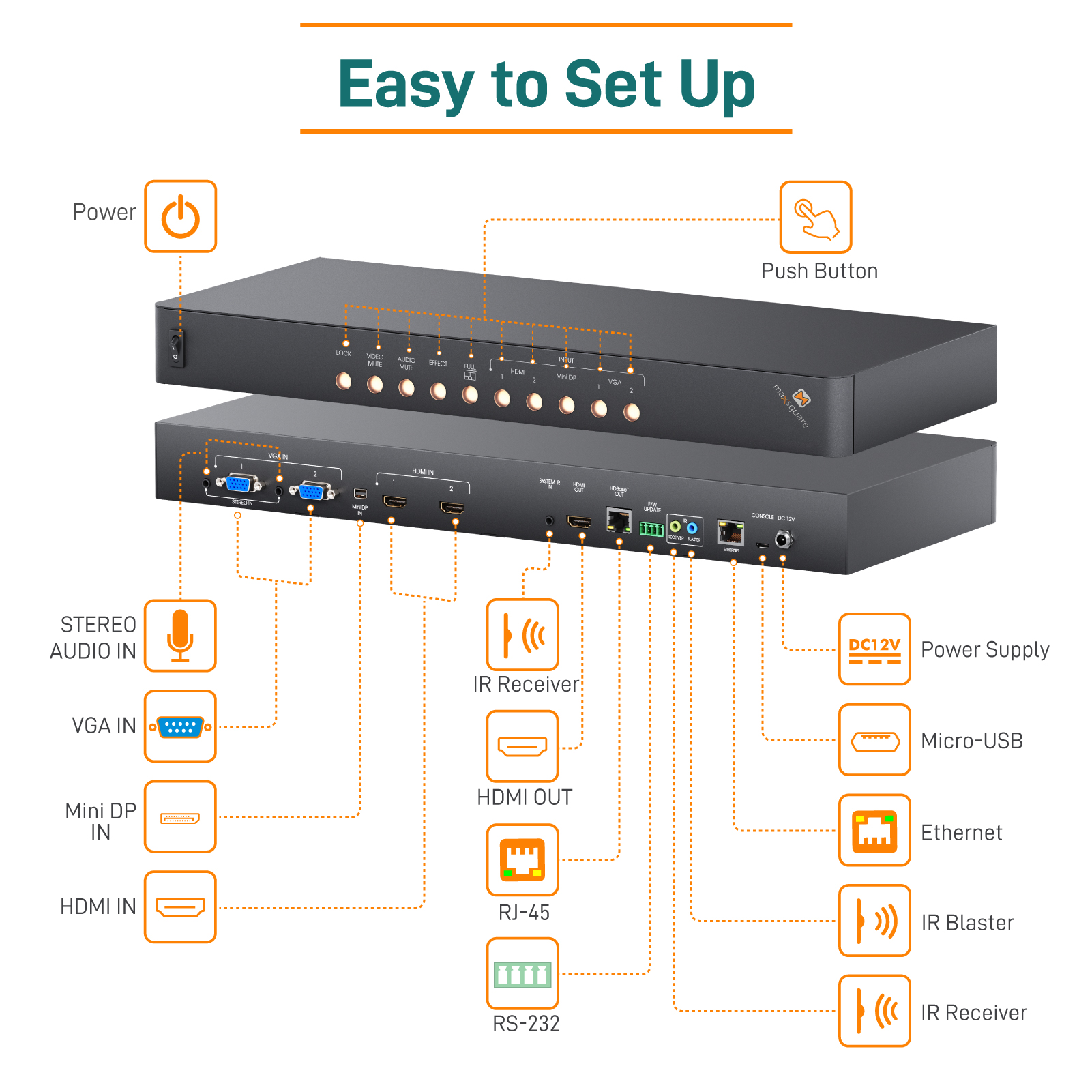

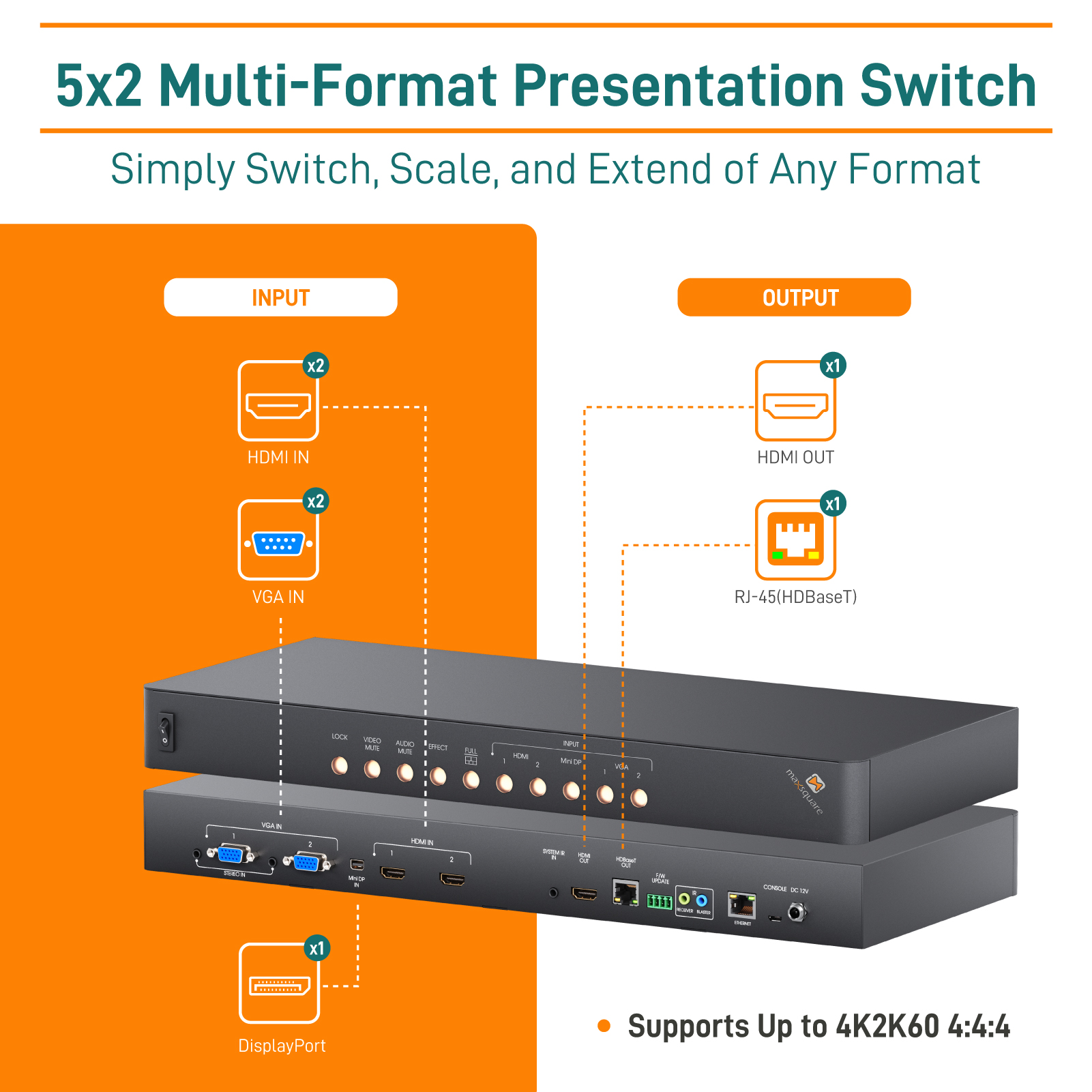

- Supports multiple video format inputs: HDMI 2.0a x2, VGA x2, DisplayPort 1.2 x1
- Supports simultaneous HDMI & HDBaseT-Lite outputs
- Input resolution supports from 720×480 to 4096×2160@60Hz (4:4:4 8bits), interlaced or progressive
- Output resolution supports: HDMI output: up to 4K2K@60Hz (4:4:4 8bits) /HDBaseT-Lite output: up to 4K2K@60 (4:2:0)

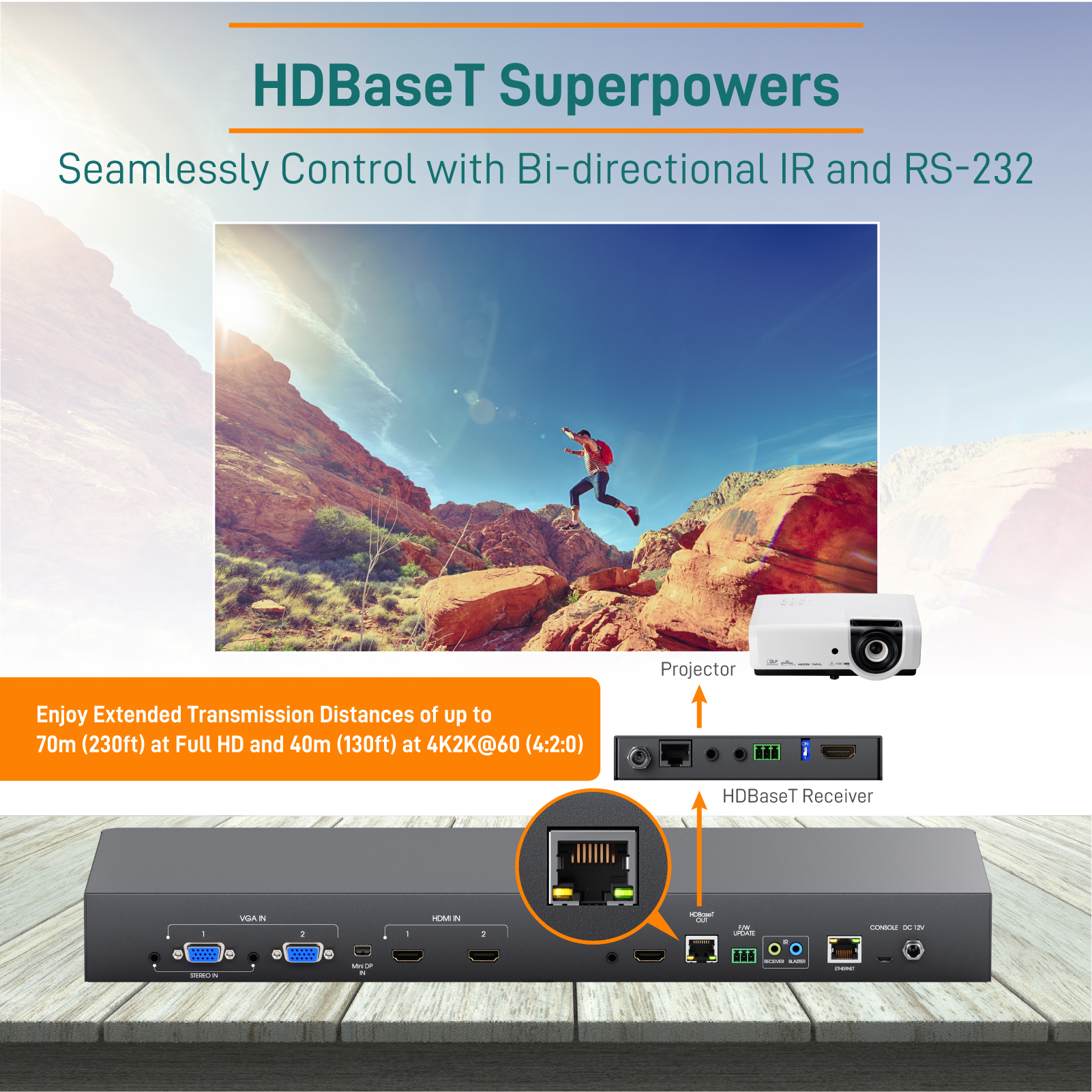

- Extend the transmission up to 70m (230ft) from the HDMI source at Full HD 1080p 36-bit and 40m (130ft) at 4K2K@60 (4:2:0)
- Supports PoC (Power over Cable) which can power from TX side with power supply
- Supports bi-directional IR path-through & full frequency IR signal from 20KHz to 60KHz
- Firmware upgradable for support of new features and technology enhancements

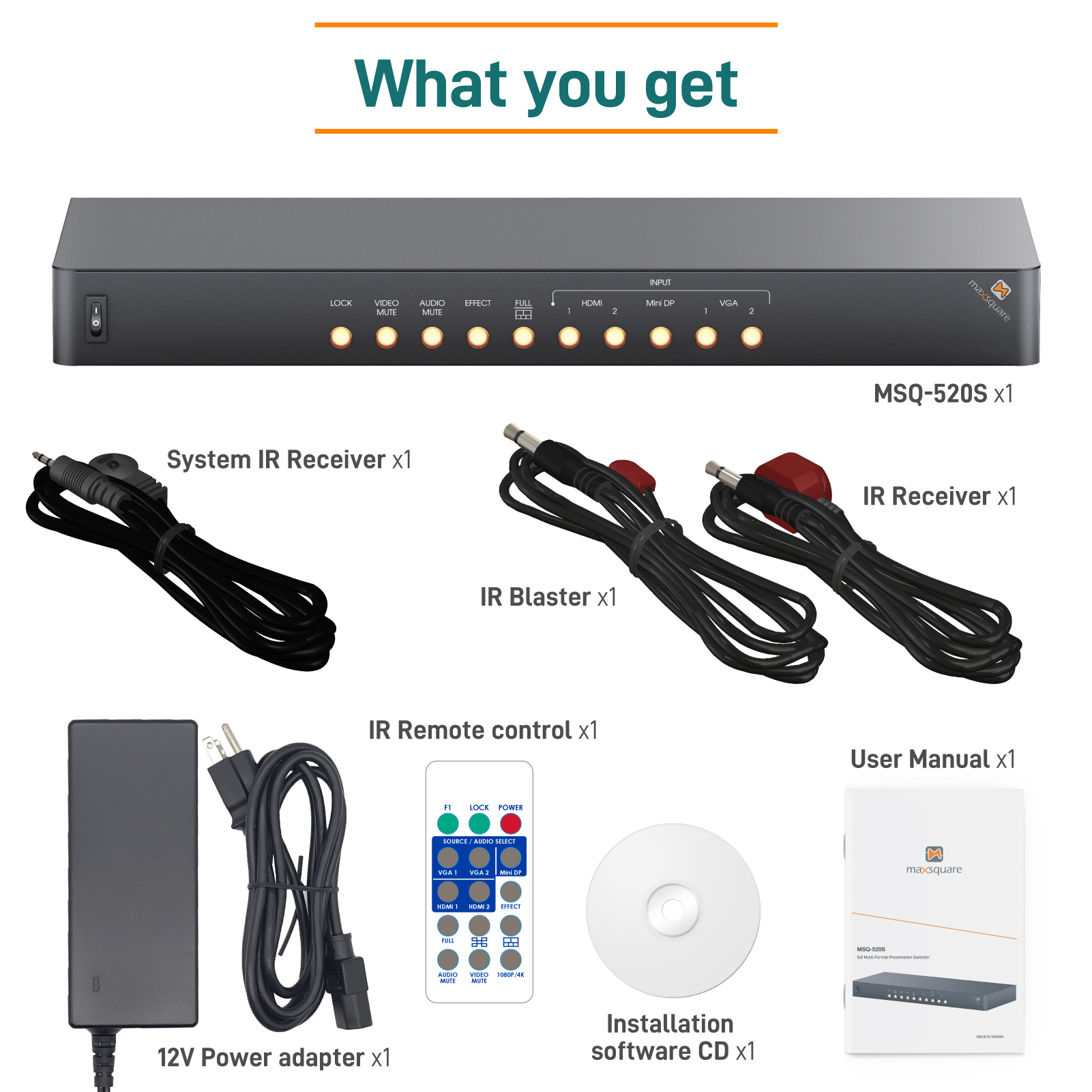

\What's in the box
- 1x MSQ-520S
- 1x 12V power supply
- 1x IR blaster cable
- 1x IR receiver cable
- 1x System IR receiver cable
- 1x IR Remote control (15 keys)
- 1x Installation software CD
- 1x User Manual
