With compatibility for HDMI 2.0 and HDCP 2.2, the MSQ-110E HDMI 2.0 4K-HDR Extender over Single Cat5/5e/6 with PoC, Bi-directional IR Remote Control increases your video/audio transmission distance up to 70m (230ft) at 4K2K@60. Users can easily extend signals from HDMI-capable sources, such as Apple TV, PlayStation, Xbox, PC, and laptop, to distant display monitors, including HDMI-enabled TV sets or LCD Computer displays, with only one affordable Cat.6 cable. Deep color video, DTS-HD or Dolby TrueHD audio, and HDCP support and compatibility are all further ensured by the superior design for the most recent HDMI technology. Furthermore, the MSQ-110E has bi-directional IR pass-through path control. Using a single Cat.6 connection and HDMI signals, these added functionalities enable customers to reach IR control distance up to 70m (230ft). Moreover, the MSQ-110E supports Power over Cable (PoC), allowing both devices to be powered by a power source from either the TX or the RX.

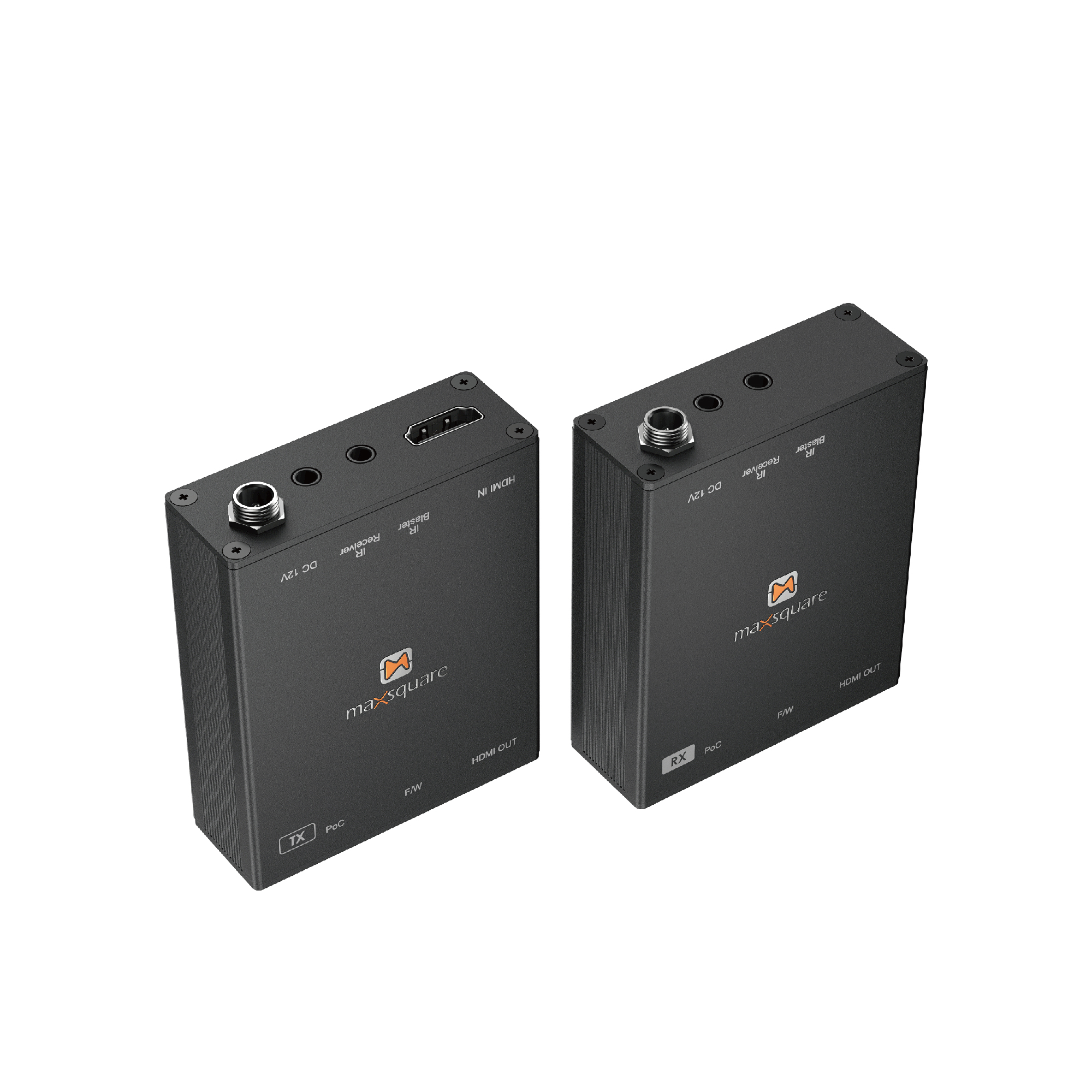

Transmitting unit MSQ-110E-TX and receiving unit MSQ-110E-RX make up the MSQ-110E. Utilizing IR control packets to capture the input HDMI signals, the TX unit transmits the signals over a single, inexpensive Cat.6 cable. The reconstructed IR control signals and the equalization of the transmitted HDMI signal are the responsibilities of the RX unit. The most practical option for digital signage with a long A/V transmission path is the MSQ-110E.
Immersive Visual Quality in 4K@60Hz
Upgrade your viewing experience with our HDMI 4K60Hz HDR 8bits, immerse yourself in vivid and high-quality visuals that surpass 4K30Hz resolution.
Bring More Details to your Video
Supports HDR (High Dynamic Range). Experience stunning video with the feature, highlighting all the details in shadows and highlights.

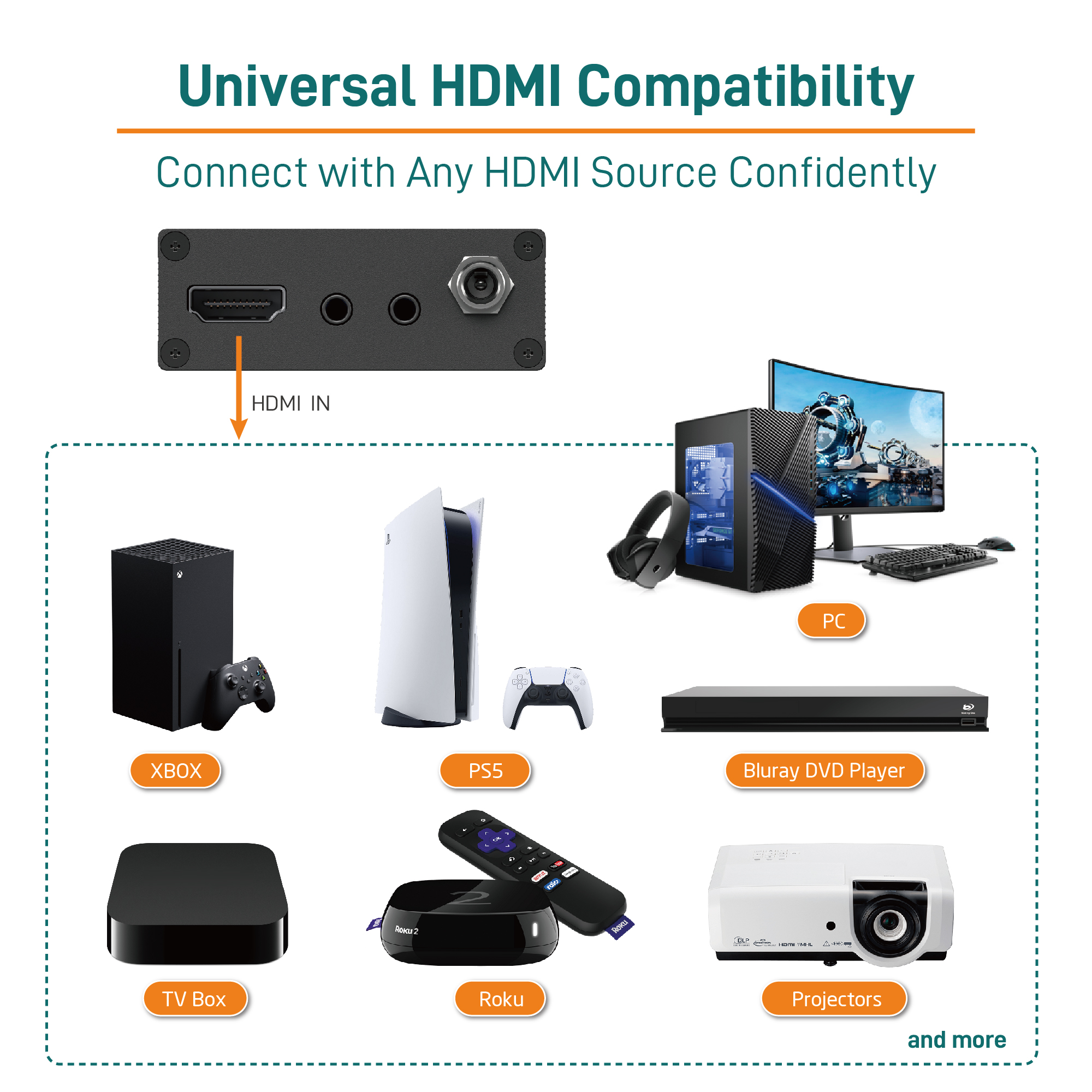

Wide Compatibility
Easily extend HDTV sources from DVD players, Blu-ray Disc players, XBOX, PS4, PCs, and other TMDS-compliant sources.
FEATURES
FEATURES & SPECIFICATION
- HDMI 2.0 compliant, HDCP 2.2/1.4 & EDID Pass-Through
- Supports 4K2K@60 4:4:4 8bits, HDR(4K2K@60 4:2:0 10bits)
- Supports HDMI input loopback
- Pure unaltered uncompressed 7.1ch digital HDMI over CAT5/5e/6 cable transmission

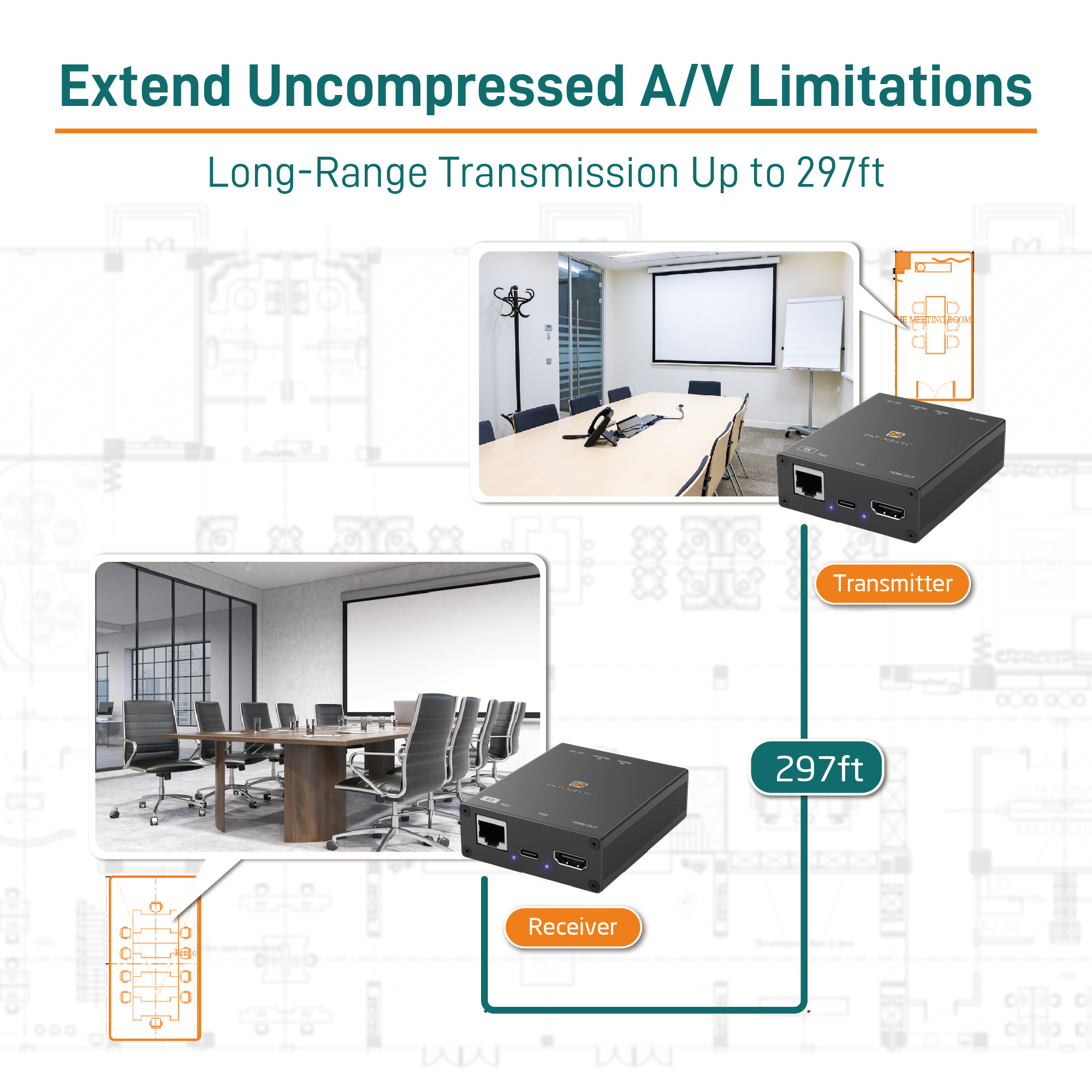

- Extends HDMI signal distance up to 70m(230ft) [CAT6] /60m(198ft) [CAT5e] at 4K2K@60 and 90m(297ft) [CAT6] /70m(230ft) [CAT5e] at 1080P@60

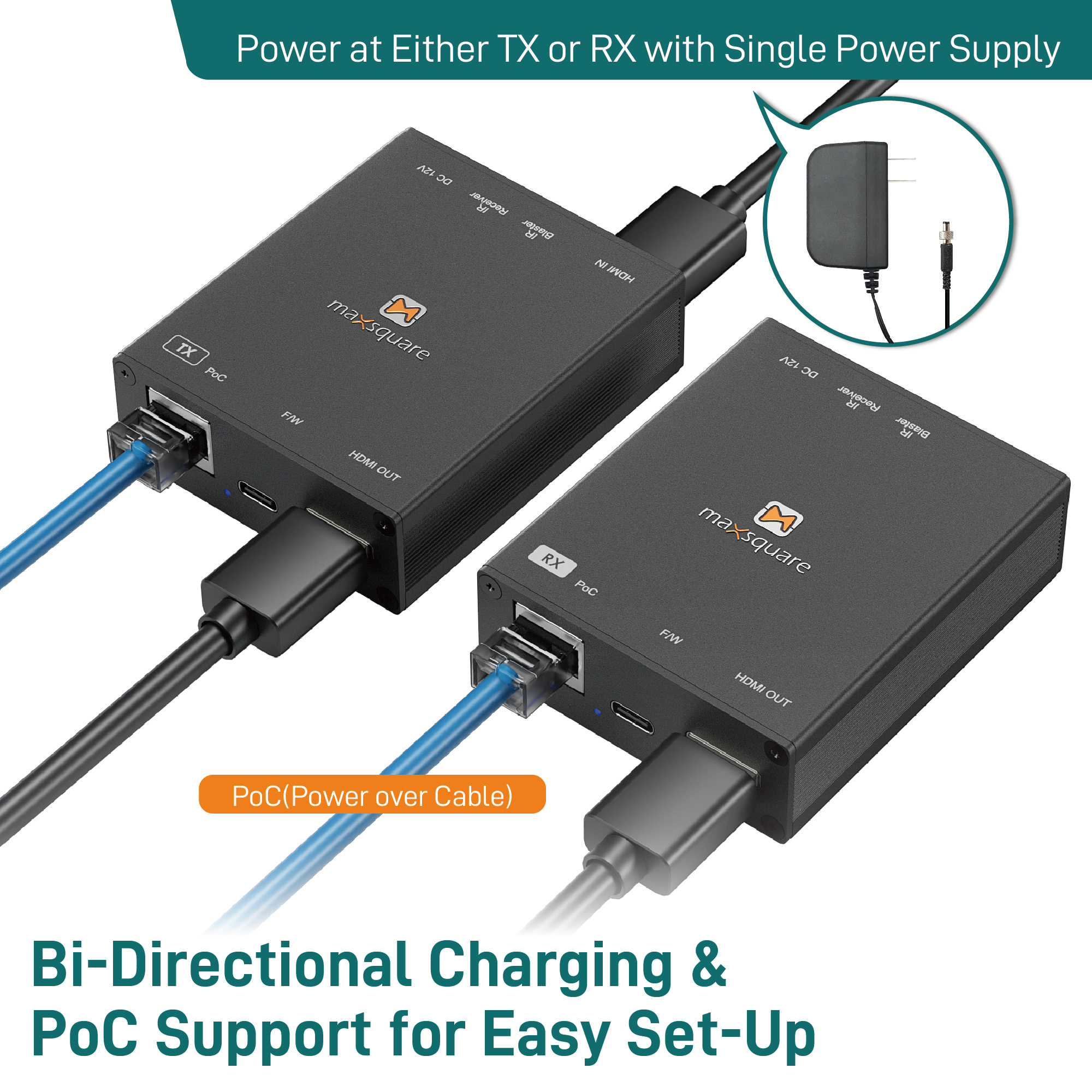

- Supports PoC (Power over Cable)-power both units from TX or RX side with power supply
- Supports full frequency IR signal from 20KHz to 60KHz

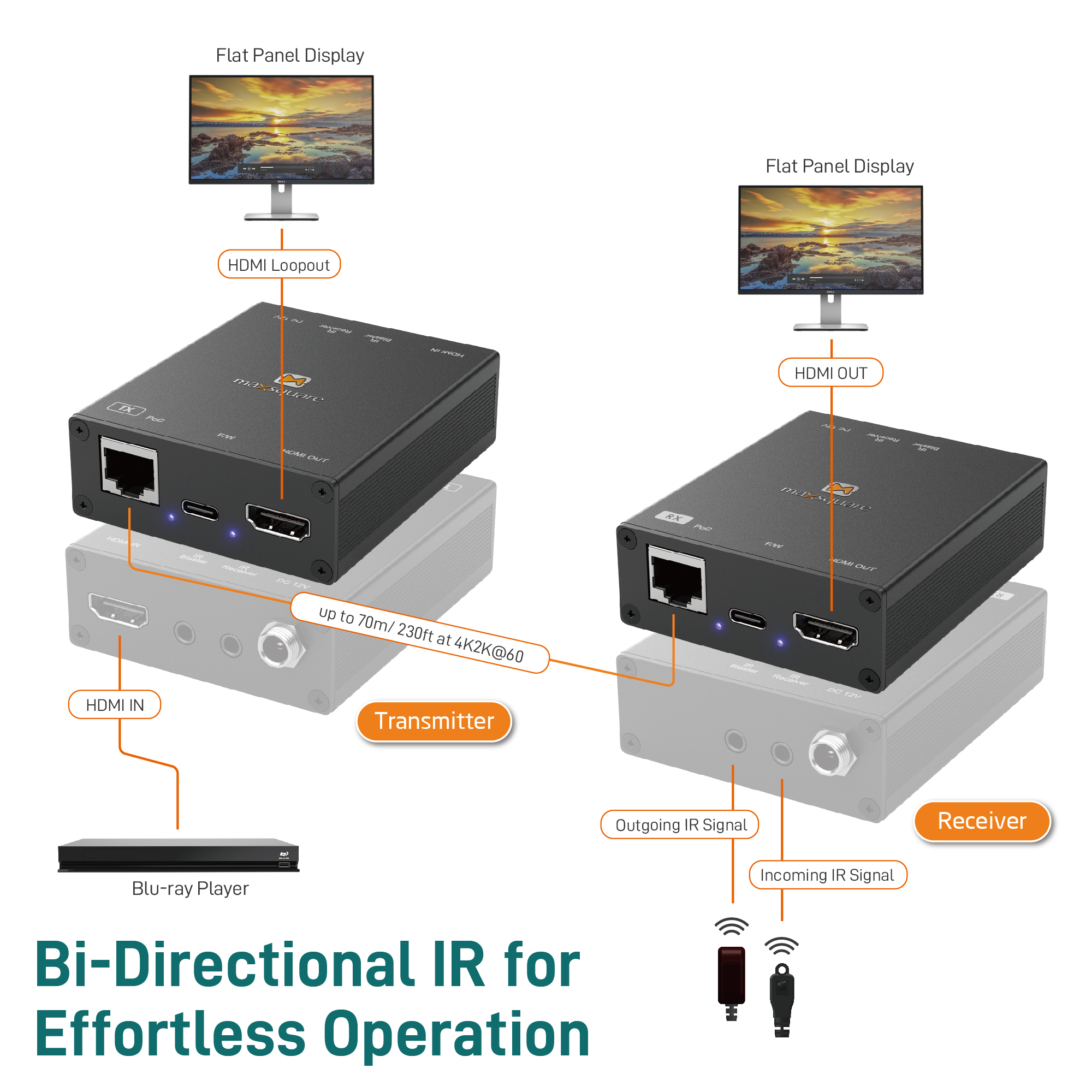

- Bi-directional IR path-through

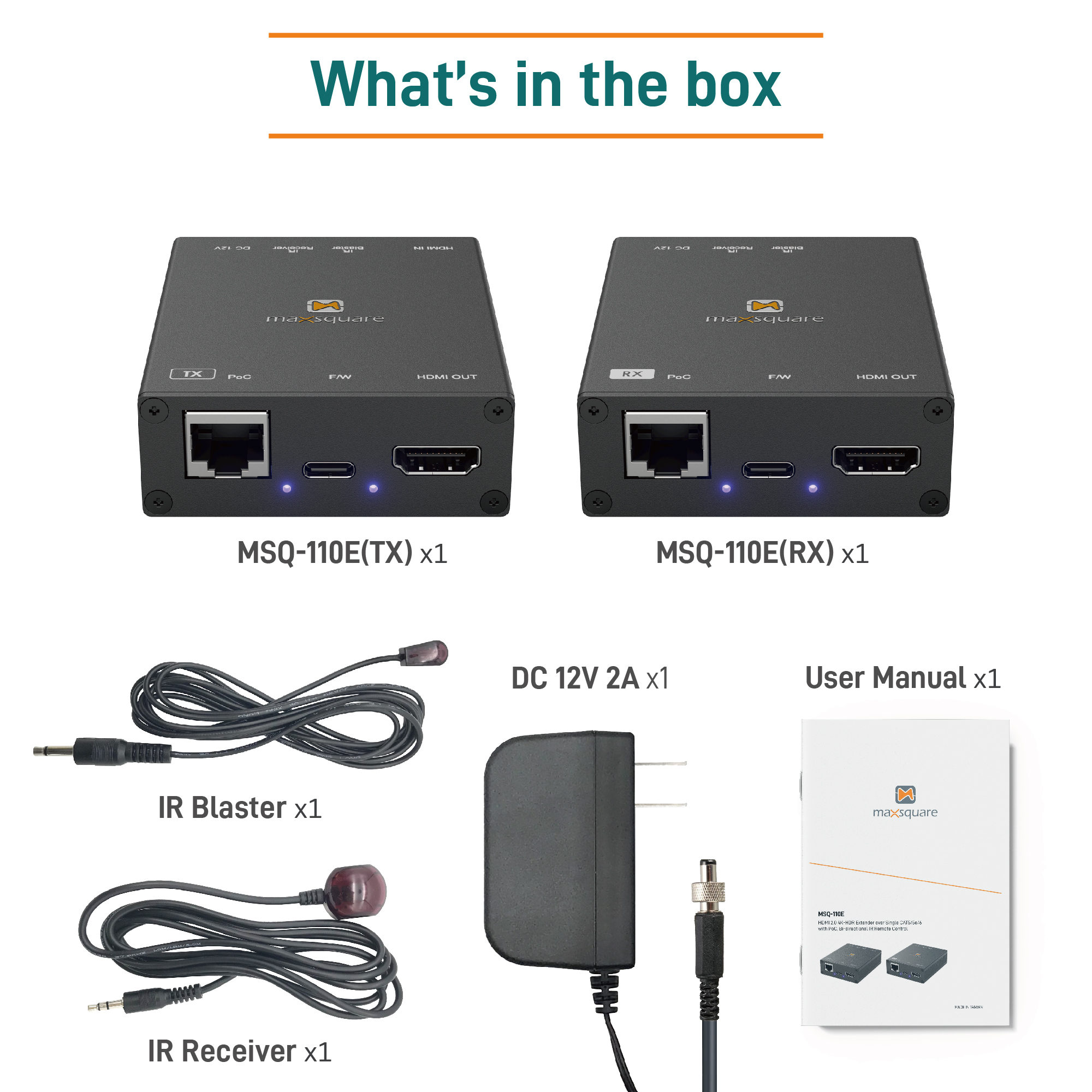

What's in the box
- 1x MSQ-110E(TX & RX)
- 1x IR Blaster
- 1x IR Receiver
- 1x 12V DC Power
- 1x User Manual
FAQ
A: Yes, you have the flexibility to power the device from either the TX or RX, as per your requirement, using a single power supply.
A: For better performance, we suggest utilizing solid UTP/STP CAT6 cables to achieve long distances (up to 70m or 230ft at 4K60). It’s important to keep in mind that the effective transmission length can be influenced by factors such as the quality of CAT5/5e/6 cables, the involved HDMI sources, and the type of HDMI display.
