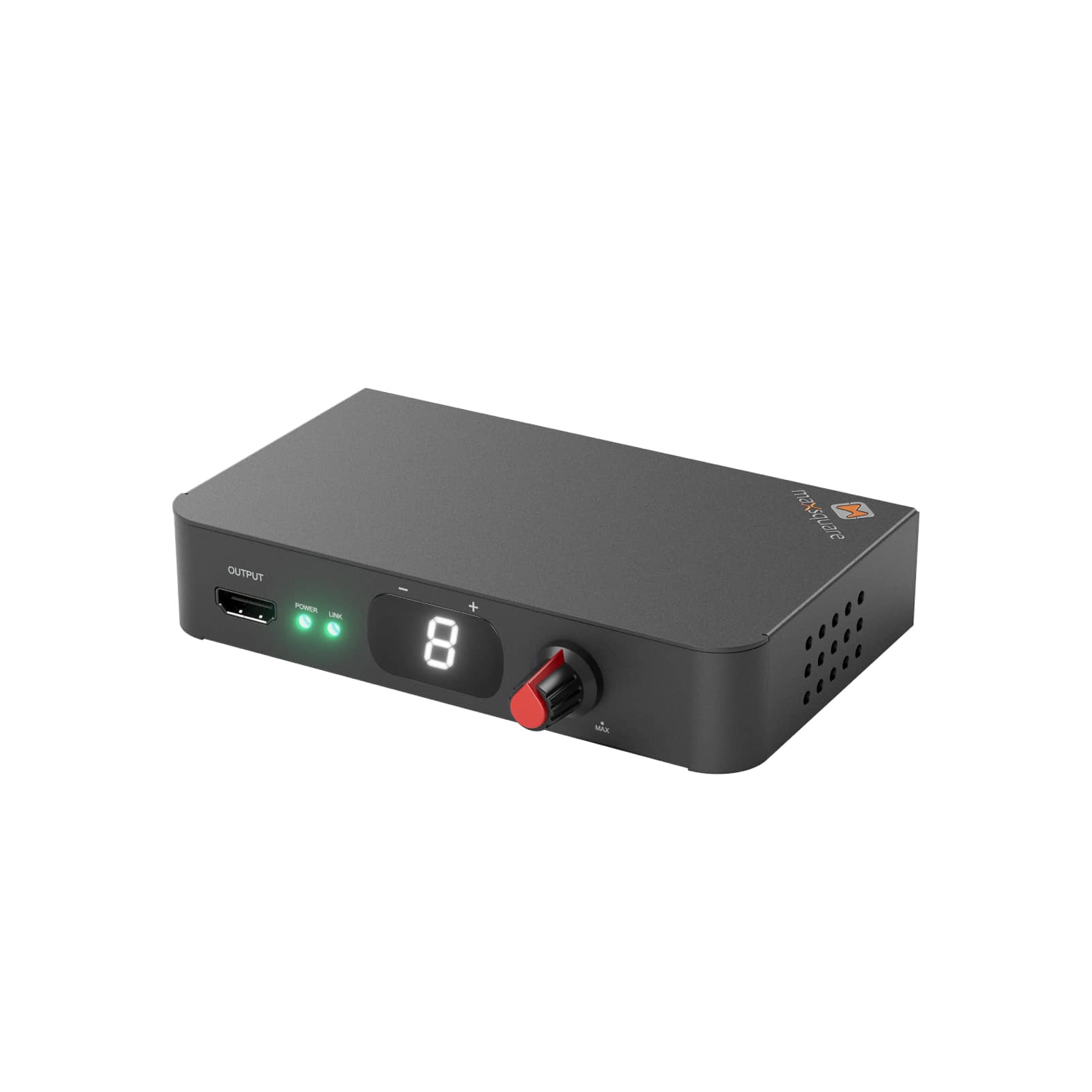

The MSQ-3500D 4K HDMI Dante Audio Extractor with Lip-Sync Delay brings the highest level of HDMI 2.0a compatibility to the market. This special gadget enables the separation of digital S/PDIF(Toslink) and high-quality Dante audio from the incoming HDMI stream.

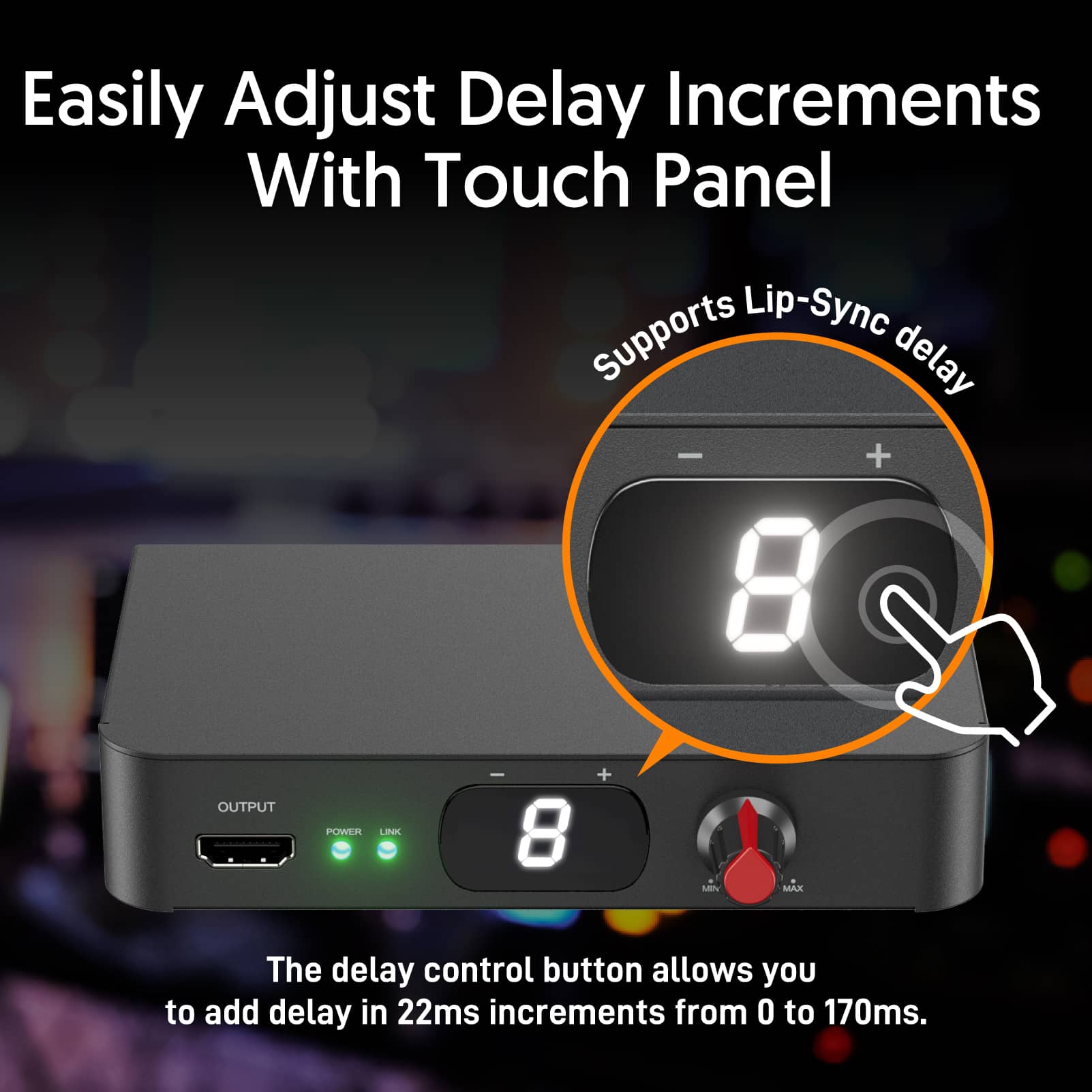

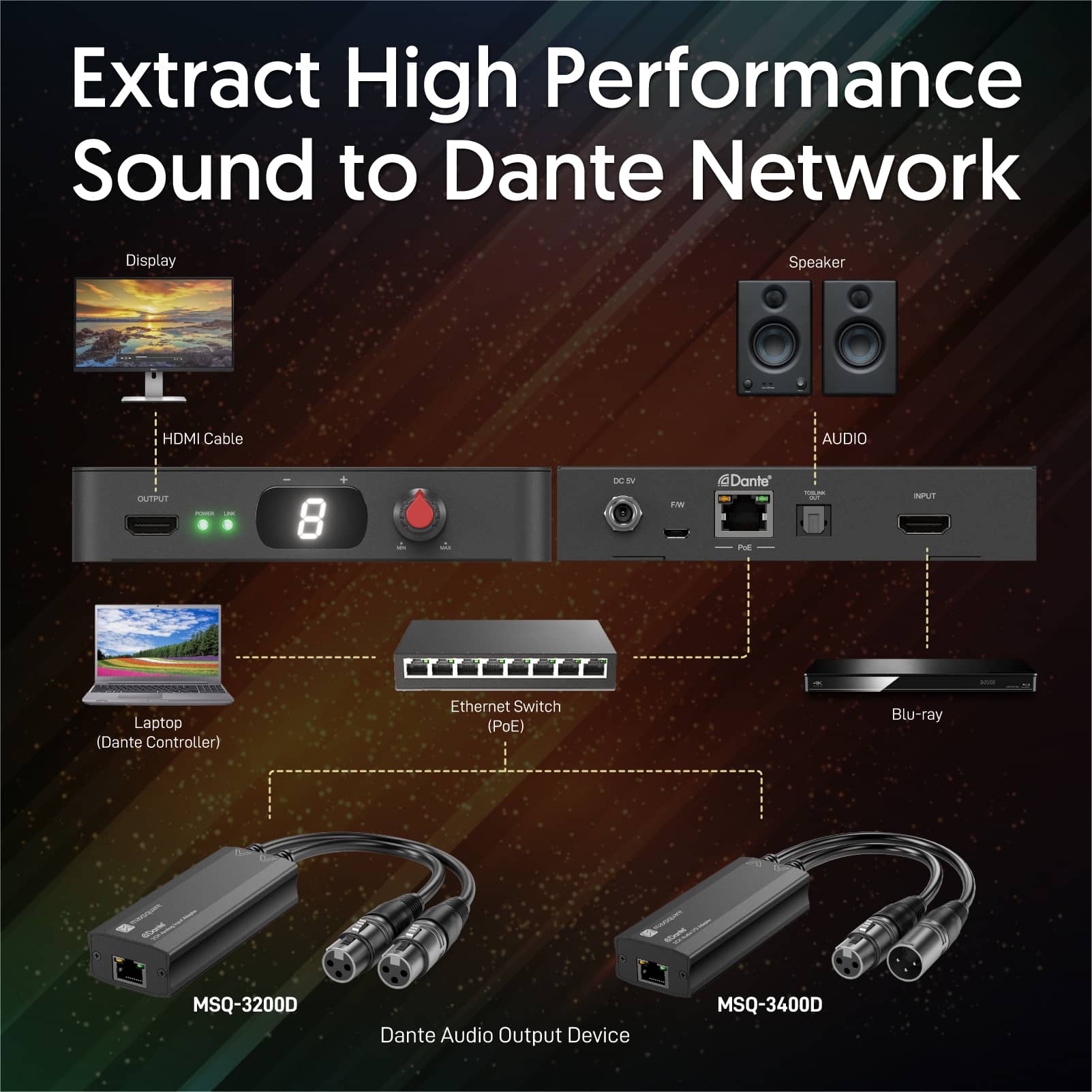

The MSQ-3500D is able to transmit uncompressed, low-latency digital audio signals over a regular IP network by using Dante. To synchronize the audio stream with the visual stream, the MSQ-3500D additionally offers Lip-Sync delay of up to 170ms. The delay control button allows you to add delay in 22ms increments from 0 to 170ms.

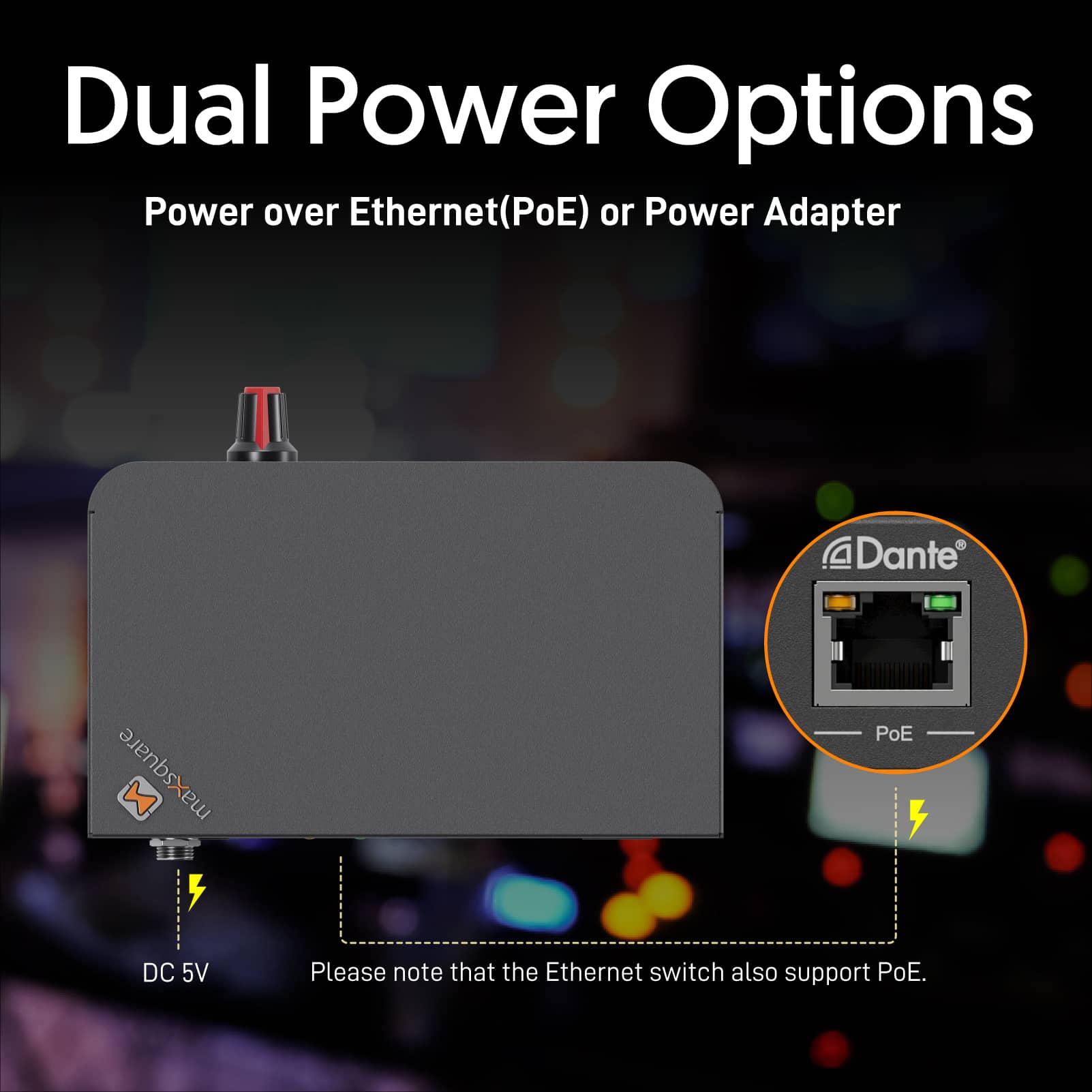

The MSQ-3500D can be powered by any network switch that supports standard PoE (Power over Ethernet). The MSQ-3500D is designed for use in a variety of settings, including conference rooms and entertainment venues.
*By default, the sample rate is set to 48kHz. If you wish to use a different sample rate, a firmware update is necessary.*
FEATURES/SPECIFICATION
- HDMI 2.0, HDCP 2.2 compliant
- Supports 4K2K@60 4:4:4 8bits, HDR (4K2K@60 4:2:0 10bits)
- Supports DHCP & static IP configuration
- Supports audio extraction via Dante network & Toslink
- HDMI/ Optical/ Dante Audio Format: PCM2
- Optical Audio sample rates: up to 96kHz /Dante Audio: 44.1, 48, 96kHz
(FW update required) - Dante audio over IP and AES67 RTP transport formats
- Supports CEC Pass-Through/ PoE (Power over Ethernet)
- Adjustable Lip-Sync delay audio output
- Supports to delay audio from 0-170 ms and easily adjust delay increments using touch panel

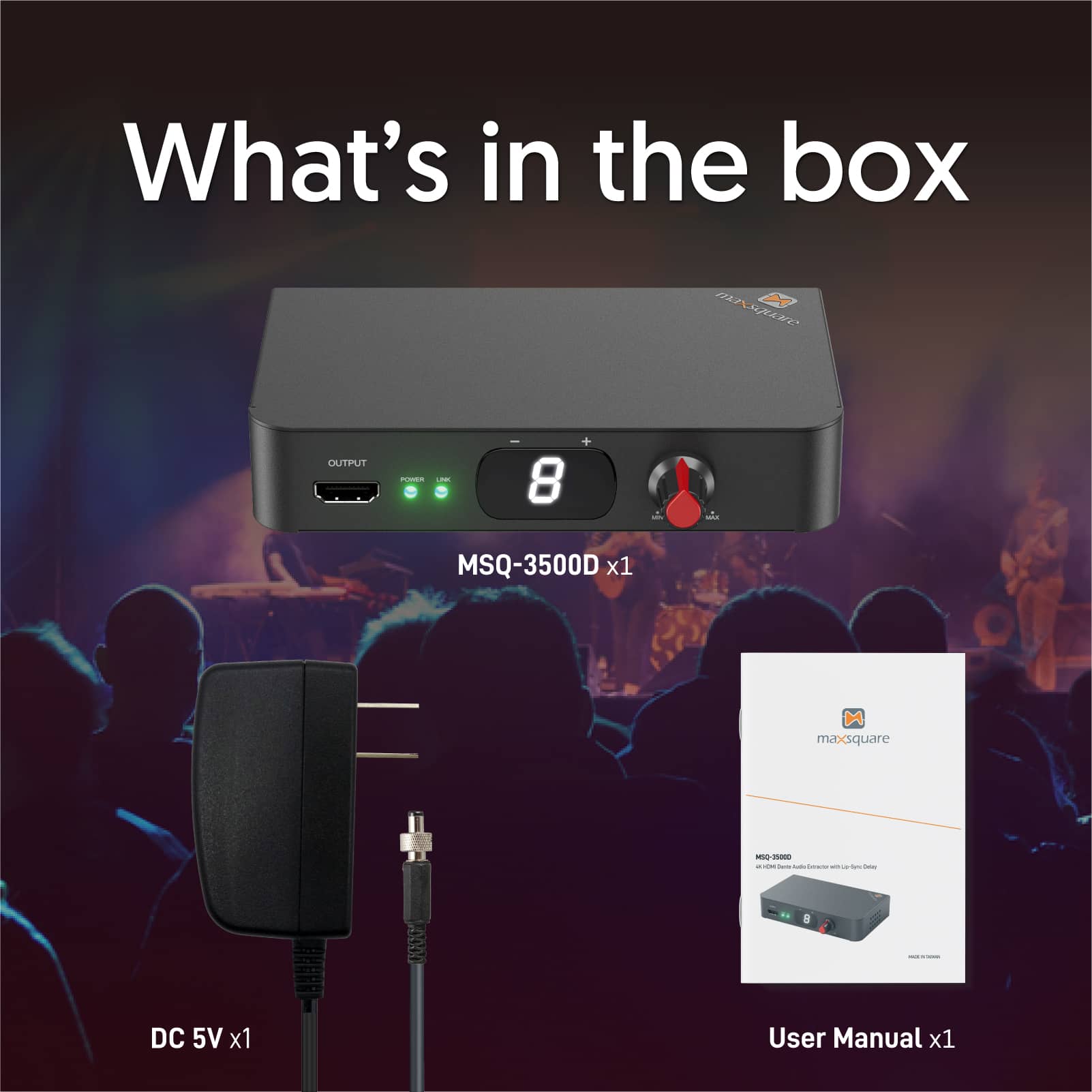

What's in the box
- 1x MSQ-3500D
- 1x 5V Power Supply
- 1x User Manual
