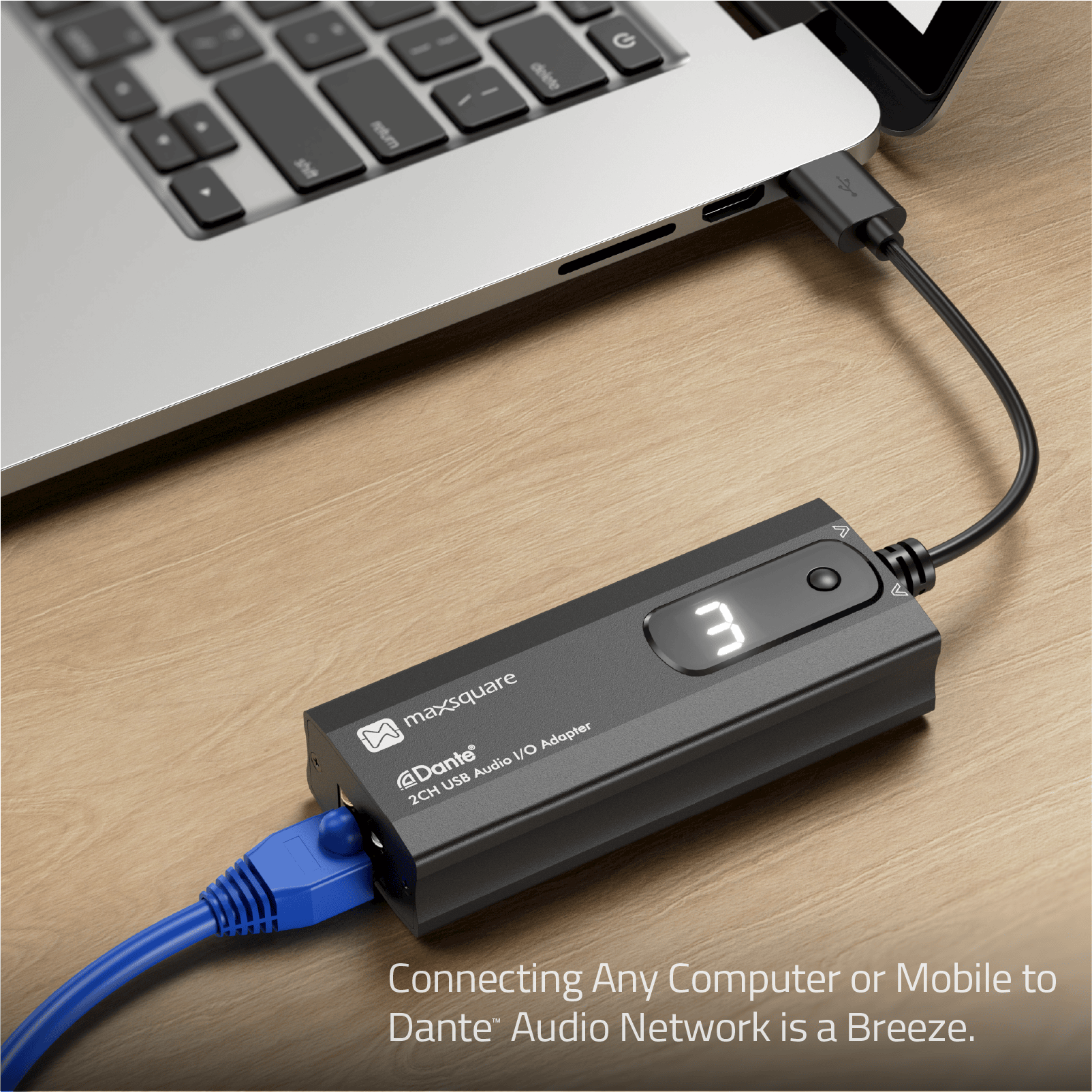

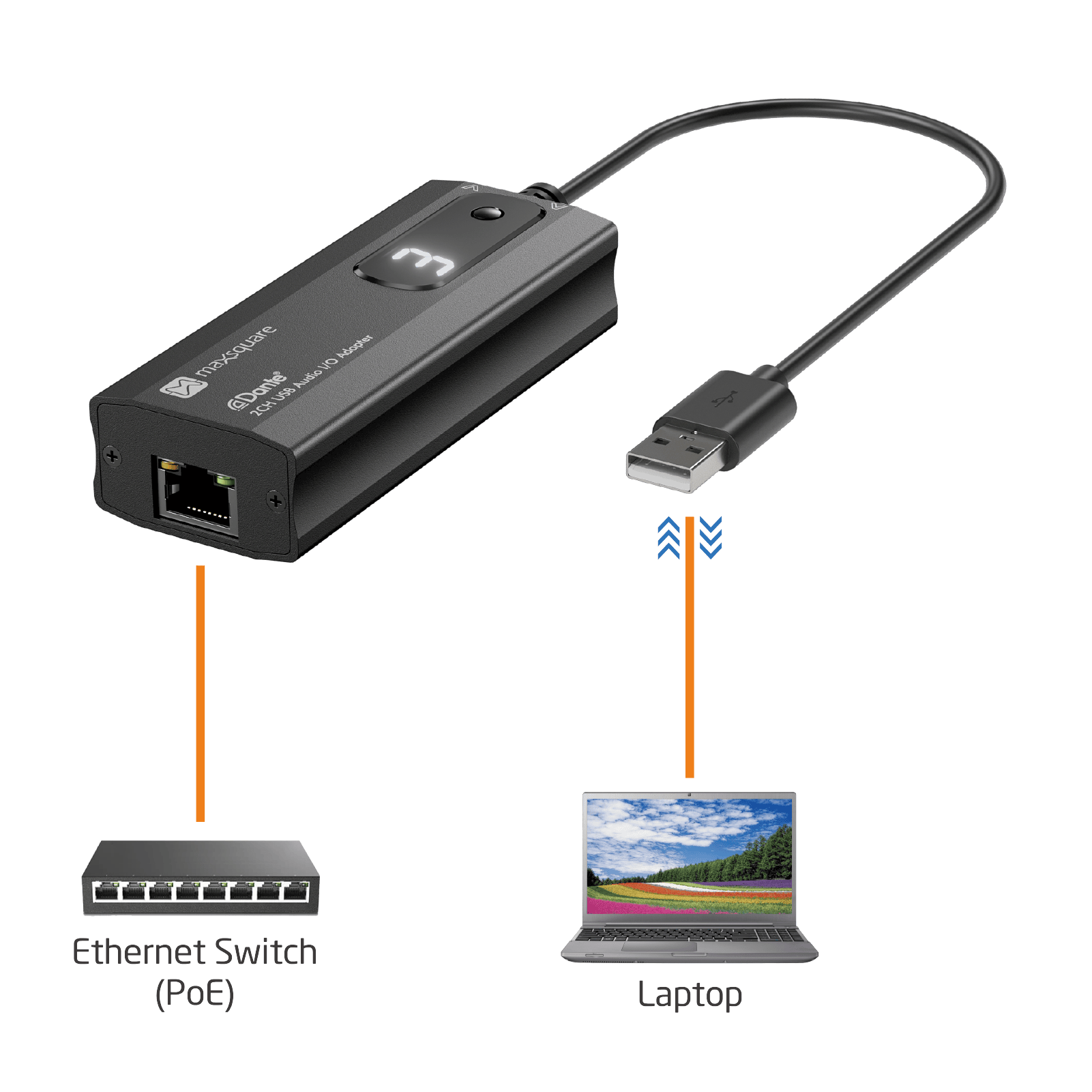

The MSQ-3100D 2CH USB Audio I/O Adapter with Lip-Sync delay function allows digital audio to be distributed over an IP network. The MSQ-3100D supports 2×2 channels of bi-directional audio, allowing PC and mobile devices to playback and record audio with any Dante-enabled device and transmit uncompressed, low-latency digital audio signals over a standard IP network. The MSQ-3100D additionally supports a Lip-Sync delay of up to 170ms to synchronize the audio stream to the video stream. The delay control button can add delay in increments of around 22ms between 0 and 170ms. Any computer can be connected to a Dante audio network for any audio application using the MSQ-3100D.
FEATURES/SPECIFICATION
- Dante audio over IP and AES67 RTP transport formats
- Supports 48kHz sample rates
- Supports DC 5V through USB connector
- Supports to delay audio from 0-170 ms
- Adjustable Lip-Sync delay audio output

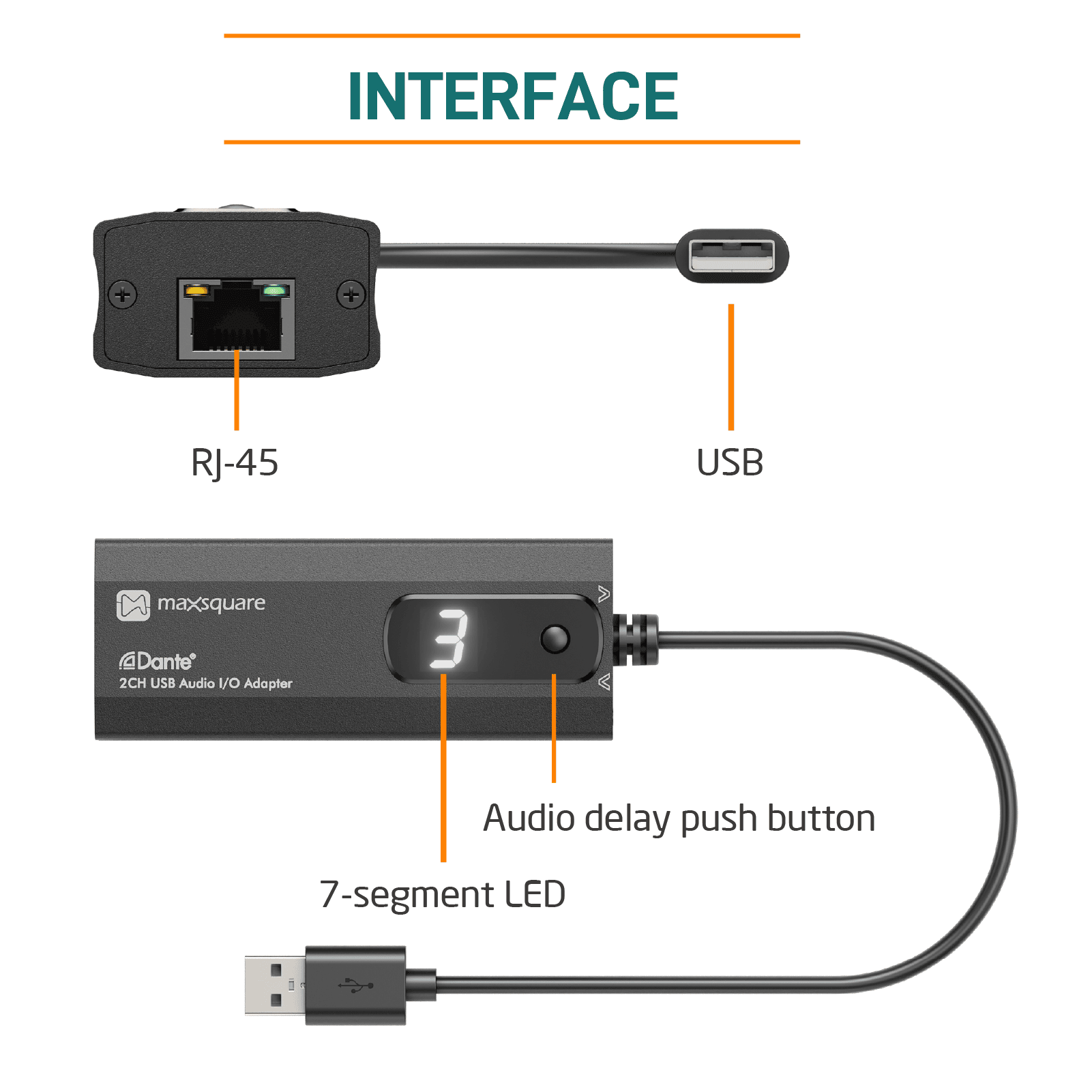

- Easily change delay increments using a push button
- Excellent dynamic range, SNR and RHD performance
- Plug & play, easy to operate

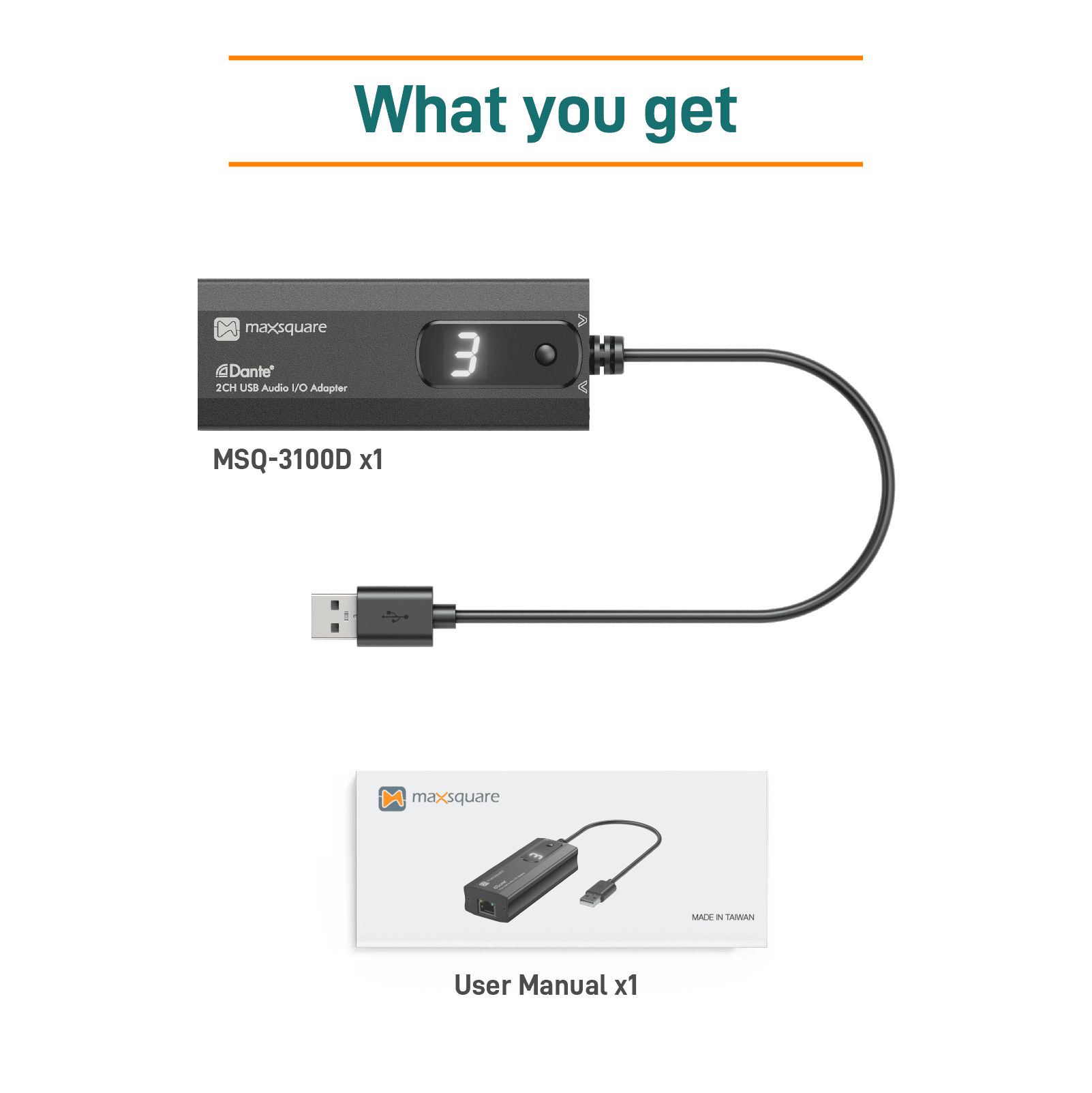

What's in the box
- MSQ-3100D X1
- Manual X1
