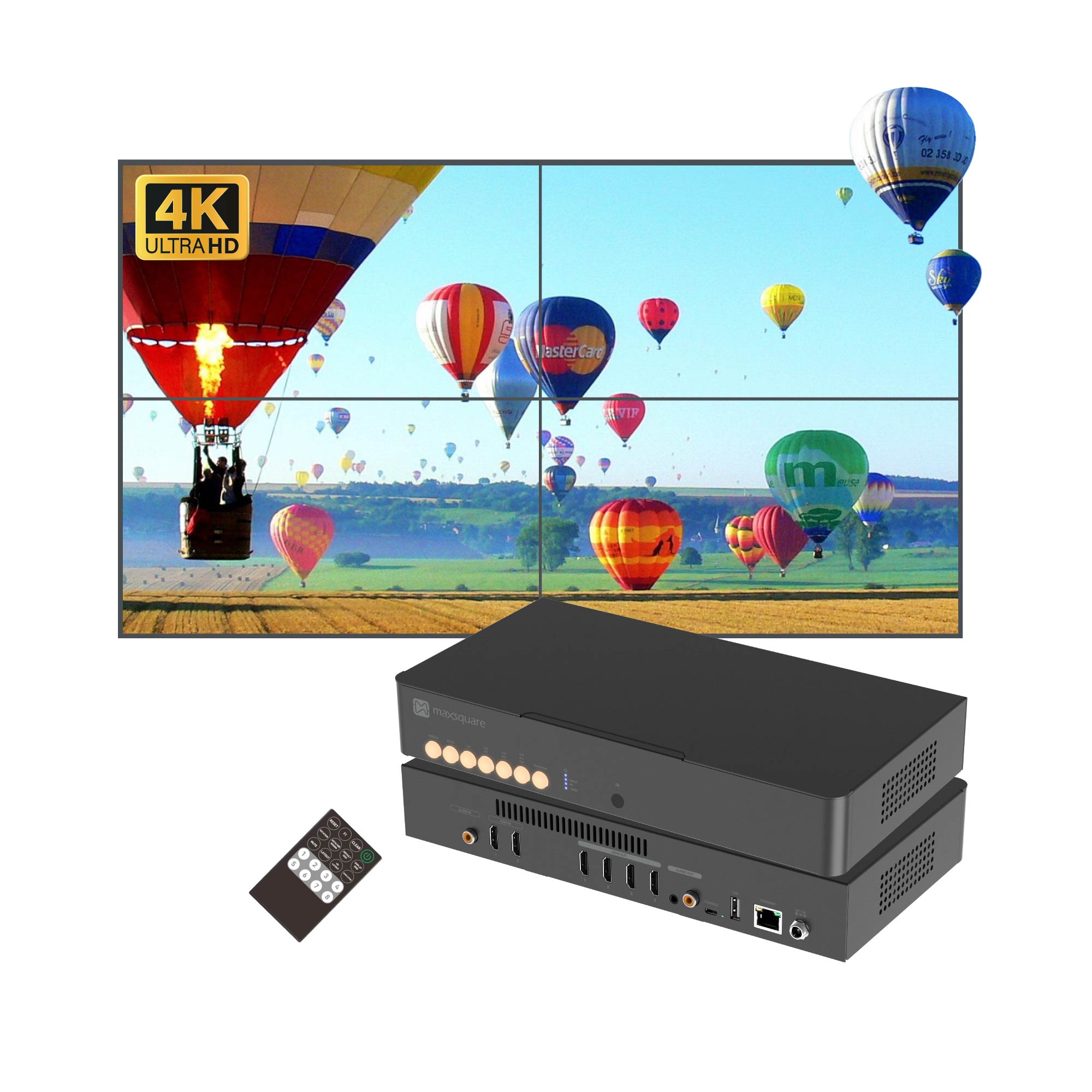

The MSQ-820VW 4K 2×4 Video Wall Processor is a powerful solution for creating visually stunning displays. Its user-friendly software allows for seamless setup of multiple displays or projectors, showcasing your content effortlessly. With two HDMI inputs supporting up to 4K2K@60Hz 4:4:4, switching between different sources is a breeze. The embedded scaler ensures optimal resolution on various display types, including flat panel displays, projectors, and monitors. Supporting output resolutions up to 4K2K@60Hz, the MSQ-820VW is ideal for digital signage, broadcasting, education, and surveillance systems.
Experience the MSQ-820VW‘s power as it effortlessly elevates your display capabilities with high-quality videos. This professional yet user-friendly video wall processor is designed for impactful visuals.
SPECIFICATION
(ONLY support WINDOWS operation system)

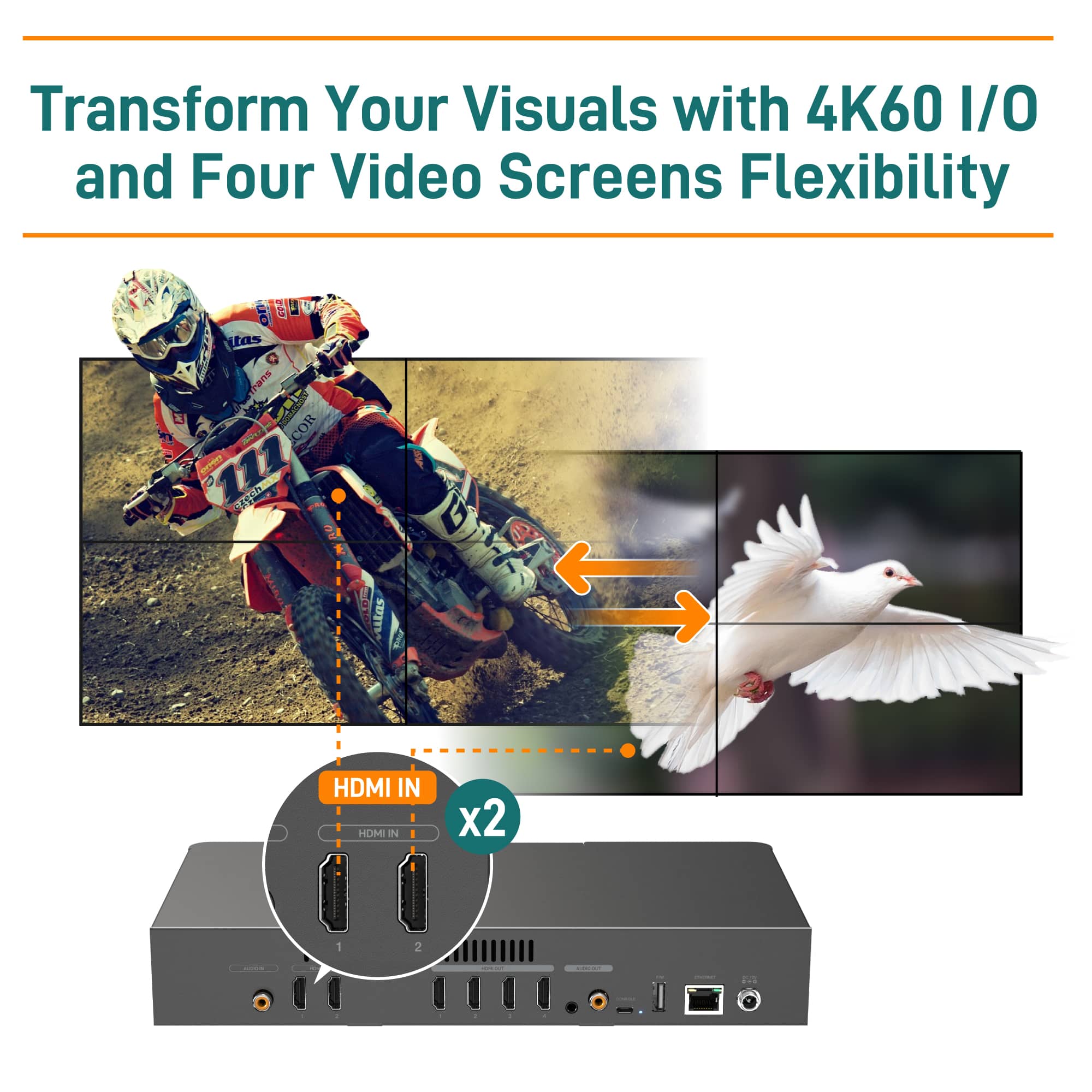

- HDMI 2.0a, HDCP 2.2 / 1.4 compliant
- 2 Input resolutions support from 640×480 to 4096×2160@60Hz 4:4:4 8bit, interlaced or progressive
- 4 Output resolutions support up to 4096×2160@60Hz 4:4:4 8bit
- Supports HDR 4096×2160@60Hz 4:2:0 10bit
- Supports default HDMI EDID, learns EDID of displays, user defined EDID
- Pure unaltered uncompressed 7.1ch digital HDMI
- User-selectable output settings, up to 4K2K@60Hz
- Supports 4K60 4:4:4 input to 4 outputs with pixel-to-pixel 4K2K@60 4:4:4 mapping
FEATURES
- Resize, position, zoom and pan output video
- Adjustable size & position through software

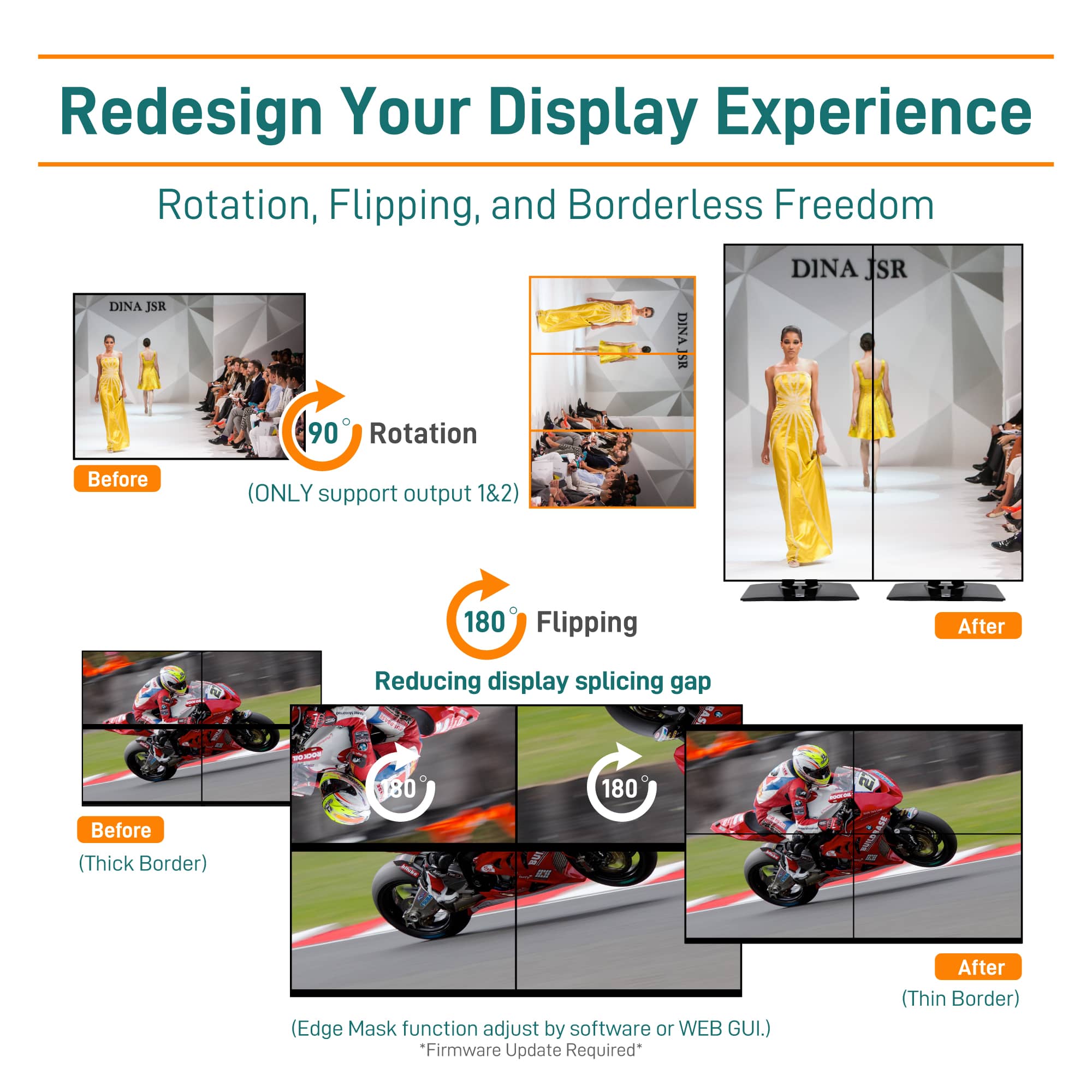

- Supports 90-degree rotation on output 1 and 2
- Supports 180-degree screen flip on each display
- Each HDMI output has an independent controllable display area
- Flexible control options: Push-in button, IR remote control, IP control, Software control and Web control
- Firmware upgradable through USB drive for support of new features and technology enhancements

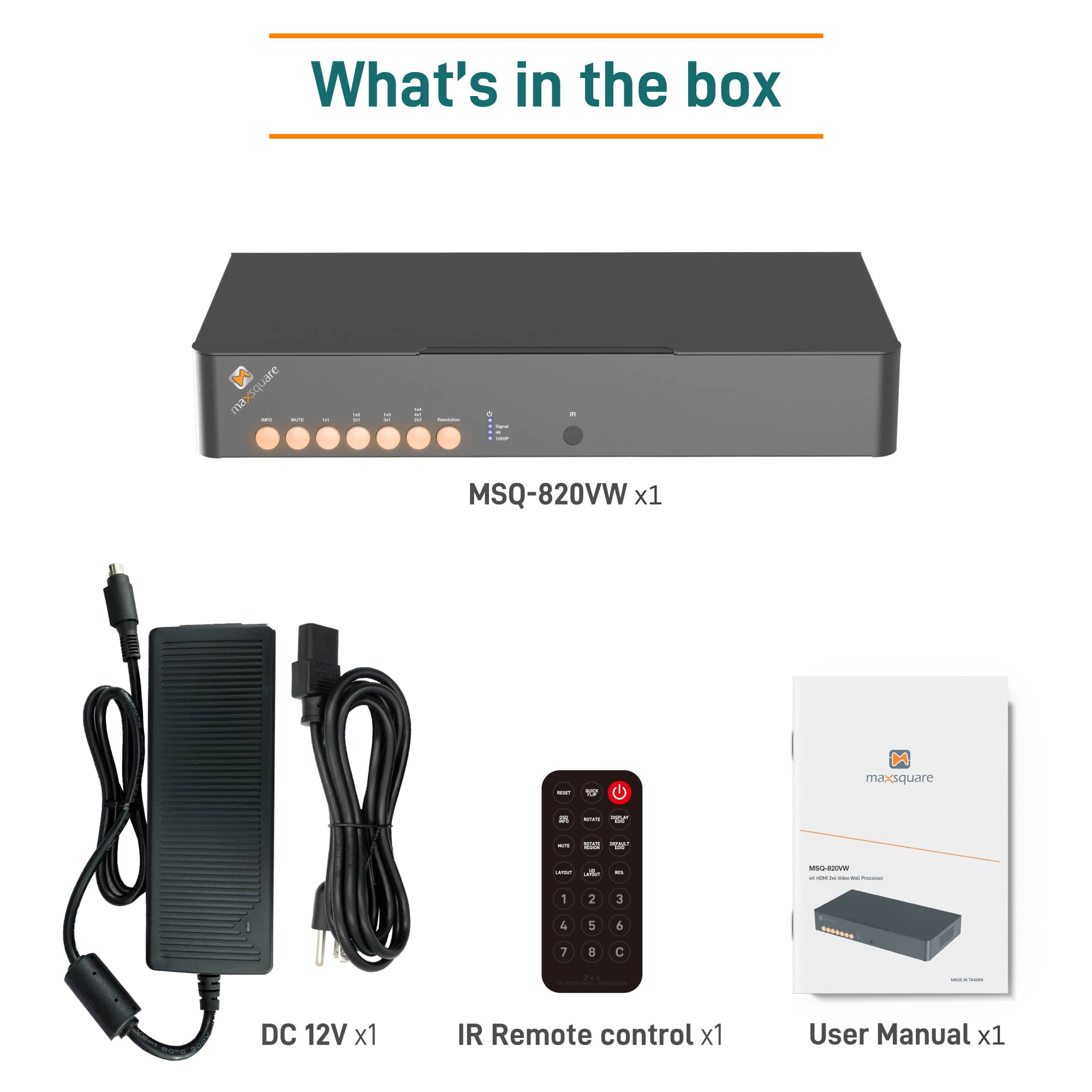

What's in the box
- 1x MSQ-820VW
- 1x DC 12V
- 1x IR Remote Control
- 1x Rack-mounting Ear Set
- 1x User Manual
FAQ
A: Yes, each of the 4 outputs can independently support up to 4K60 4:4:4 resolution.
A: Yes. You can flip by 180 degree for each display through software easily.
A: This video wall processor only supports Windows operating system and does not support iOS. If you install Windows on your Mac, there’s a high probability that the device may not be recognized or function properly.
